Product Number: MDVO MOD FURNITURE ADAPTERS

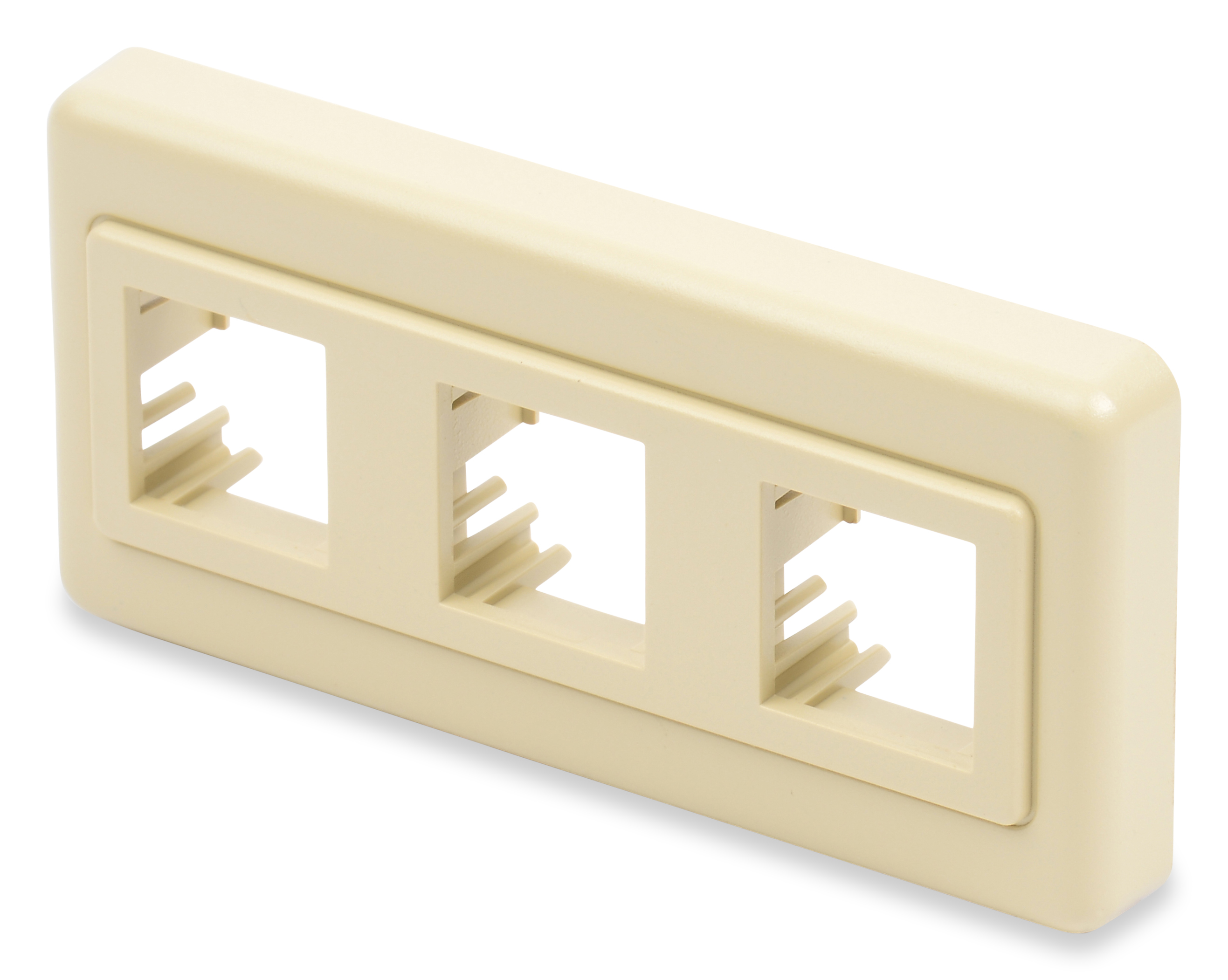

MDVO Modular Furniture Adapters
MDVO Modular Furniture Adapters are available in 3 or 4 Ports with many color options.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200 |
|---|
Physical Characteristics (Overall)
|
Height |
3.3 m |
|---|---|
|
Width |
1.57 |
|
Depth |
0.5 |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
0.11 kg |
Connectors
Materials
| Material |
|---|
| Plastic - UL94V-0 |
Temperature Range
|
Installation Temperature Range |
-10 to 60°C |
|---|---|
|
Storage Temperature Range |
-40 to 70°C |
|
Operating Temperature Range |
-10 to 60°C |
Mechanical Characteristics
|
Footprint/Type |
MDVO |
|---|---|
|
Connector/Hardware Retention |
20 lbs |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with 10GX, CAT6+ and CAT5E MDVO-style Modular Jacks and MDVO Multimedia Modules |
|---|
Product Notes
|
Included Parts |
installation sheet, blank |
|---|---|
|
Notes |
For proper installation refer to Installation Guide P0746008 included with the product or visit our web site at http://www.belden.com |
History
|
Update and Revision |
Revision Number: 0.190 Revision Date: 03-04-2023 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.190 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | Port Count |
|---|---|---|
| A0407072 | Almond | 3 Port |
| AX100926 | Almond | 4 Port |
| A0407074 | Black | 3 Port |
| A0407071 | Gray | 3 Port |
