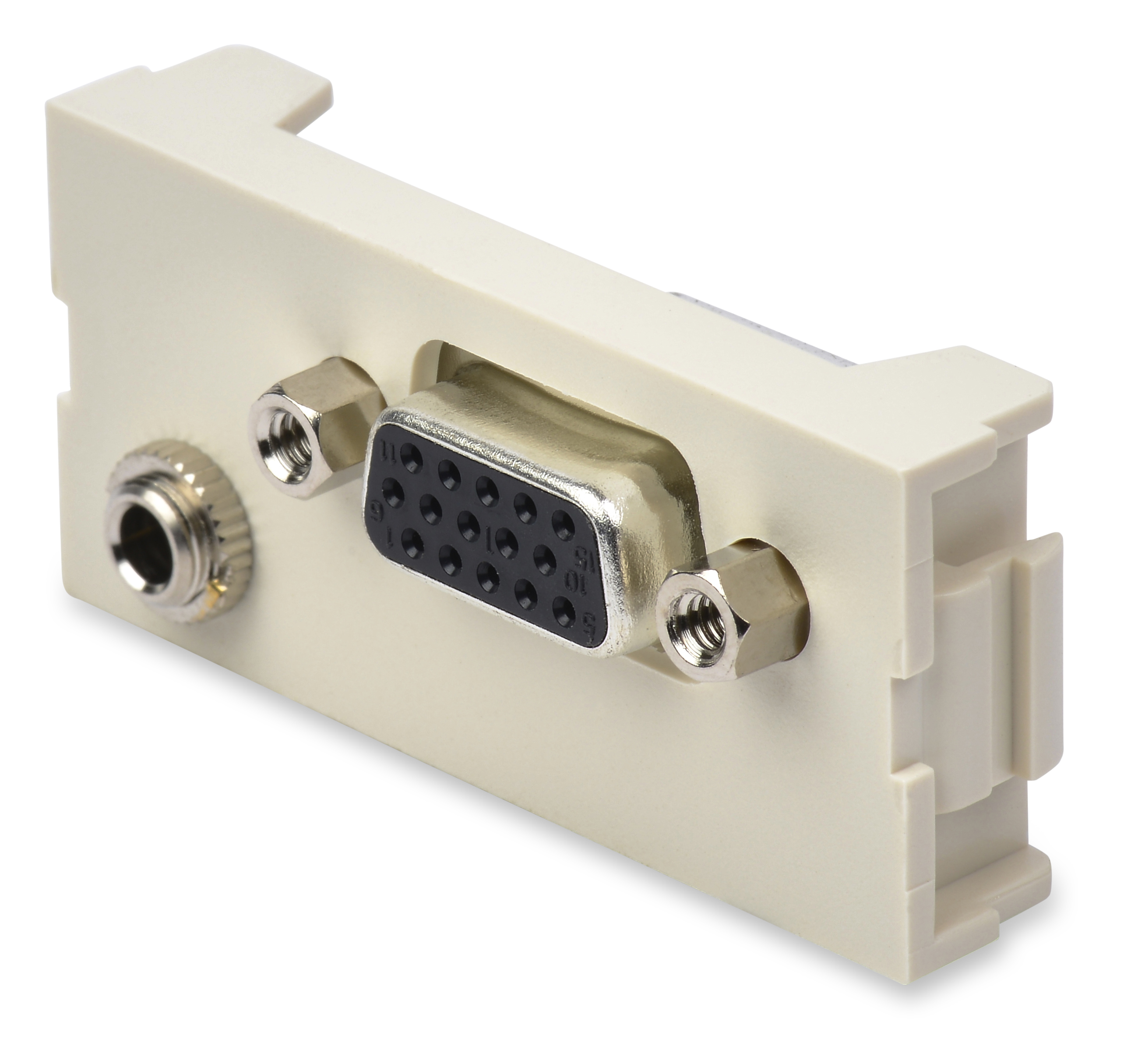

MEDIAFLEX SVGA STEREO INSERT

MediaFlex Multimedia SVGA Stereo Insert

...
MediaFlex Multimedia SVGA Insert, Compatible with MediaFlex Faceplate

Regions Available: Global
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Multimedia

Physical Characteristics (Overall)

Height

0.93 m

Width

2.05

Depth

0.95

Packaging

Individually packaged in a plastic bag.

Weight

0.051 kg

Connectors
Materials
Description Material Type
Front Connection Metal SVGA FeedThhrough
Rear Connection Metal SVGA FeedThhrough
Front Connection Metal 3.5 mm Audio
Rear Connection Metal Solder
Insert Plastic - UL94V-0
Temperature Range

Installation Temperature Range

-10 to 60°C

Storage Temperature Range

-40 to 70°C

Operating Temperature Range

-10 to 60°C

Mechanical Characteristics

Footprint/Type

Mediaflex

Tool Compatibility

Release Tool (AX101185)

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing

ACA, Bi-national Standard Listed

Related Part Numbers

Related Parts

Compatible with MediaFlex Faceplates

Product Notes

Notes

For proper installation refer to Installation Guide PX102063 available on our web site at http://www.belden.com

History

Update and Revision

Revision Number: 0.67 Revision Date: 03-04-2023

Part Numbers
Item # Color
AX105158-AL Almond
AX105158-BK Black
AX105158-EW Electric White
AX105158-GY Gray
AX105158-IV Ivory
