MEDIAFLEX SVHS IDC INSERT

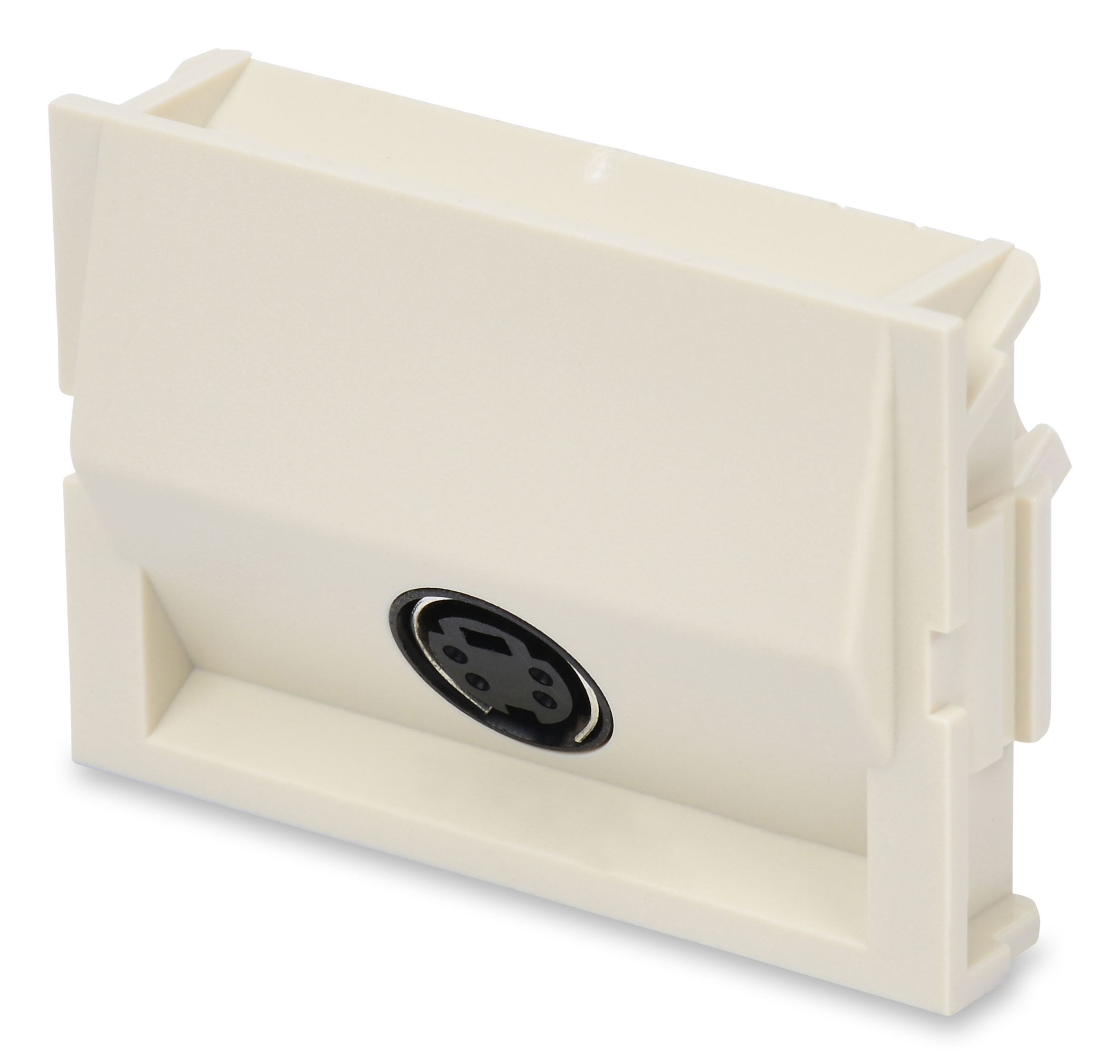

MediaFlex Multimedia SVHS IDC Insert

...
MediaFlex Multimedia SVHS IDC Insert, Compatible with MediaFlex Faceplate
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Multimedia

Physical Characteristics (Overall)

Height

1.39 m

Width

2.05

Depth

1.41

Packaging

Individually packaged in a plastic bag.

Weight

0.044 kg

Connectors
Materials
Description Material Type
Front Connection Metal S-Video
Rear Connection Plastic - UL94V-0 110
Insert Plastic - UL94V-0
Temperature Range

Installation Temperature Range

-10 to 60°C

Storage Temperature Range

-40 to 70°C

Operating Temperature Range

-10 to 60°C

Mechanical Characteristics

Footprint/Type

Mediaflex

Tool Compatibility

Termination Station (AX101852), Release Tool (AX101185)

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing

ACA, Bi-national Standard Listed

Related Part Numbers

Related Parts

Compatible with MediaFlex Faceplates

Product Notes

Included Parts

Pin assignment guide

Notes

For proper installation refer to Installation Guide PX102063 available on our web site at http://www.belden.com

History

Update and Revision

Revision Number: 0.224 Revision Date: 03-04-2023

Part Numbers
Item # Color
AX101882 Almond
AX101884 Black
AX101881 Gray
AX102579 Ivory
AX101883 White
AX102617 White
