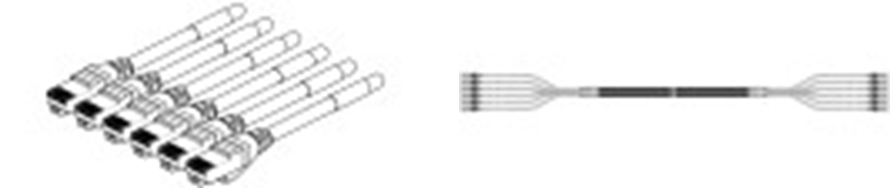

Copper Patch Cords - C6011xx000A06

3600 Pre-Terminated Cable Assembly, Bonded-Pair, 4-Pair, 23 AWG Solid, T568A/B-T568A/B, 6 Cables, CMR (See Product Family for colors & lengths)

Availability:

Global
Status:

Active

Quote

Specifications
Resources

Specifications

Expand All

Product Overview

Suitable Applications	IBDN System 3600, TIA Category 6, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W)

Physical Characteristics (Overall)

Conductor

AWG	Stranding	Material	No. of Pairs
23	Solid	BC - Bare Copper	4

Insulation

Material
PO - Polyolefin

Outer Jacket

Material
PVC - Polyvinyl Chloride

Overall Nominal Diameter	0.75 in
Wiring Scheme	T568A/B-T568A/B
Packaging	Individually packaged in a box

Connectors

Materials

Description	Material	Type
Plug	Polycarbonate	RJ45
Boot	Elastomer
Front Connection	Phosphor Bronze with 50u inch Gold over Nickel Plating	Blades
Sleeve	Engineered Polymer Riser Rated

Electrical Characteristics

Dielectric Strength	1,000 V RMS @ 60 Hz for 1 minute
Current Rating	1.500 A
Insulation Resistance	500 M-Ohm Minimum
Max Contact Resistance	20 mOhm

High Frequency Table Notes	100 meter Cable Specifications - * TIA/EIA-568.2-D Category 6 Standard

Voltage

UL Voltage Rating
300 V RMS

Mated Connection

Frequency (MHz)	Max. Insertion Loss Belden** (dB)	Min. Return Loss Belden** (dB)	Min. Balanced TCL TIA* (dB)	Min. Balanced TCL Belden** (dB)
1 MHz	2 dB	20 dB	40 dB	42 dB
4 MHz	3.7 dB	23 dB	40 dB	42 dB
8 MHz	5.2 dB	24.5 dB	40 dB	42 dB
10 MHz	5.8 dB	25 dB	40 dB	42 dB
16 MHz	7.4 dB	25 dB	38 dB	40 dB
20 MHz	8.3 dB	25 dB	37 dB	39 dB
25 MHz	9.3 dB	25 dB	36 dB	38 dB
31.25 MHz	10.4 dB	25 dB	35.1 dB	37.1 dB
62.5 MHz	15 dB	25 dB	32 dB	34 dB
100 MHz	19.3 dB	25 dB	30 dB	32 dB
200 MHz	28.3 dB	21.6 dB	27 dB	29 dB
250 MHz	32.1 dB	20.5 dB	26 dB	28 dB
300 MHz	35.6 dB	20.1 dB

Temperature Range

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Mechanical Characteristics

Maximum Recommended Pulling Tension	11.250 lbs
Min Bend Radius (Overall Cable)	1.040 in
Plug /Jack Compatibility	RJ45

Termination Interface

Termination	Connection	Durabilities
RJ45	Mated Connection	750 Cycles

Standards

UL Rating	Riser
TIA/EIA Compliance	Category 6 - TIA-568.2-D ISO/IEC 11801-1
IEEE Compliance	IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseT^TM (POH) up to 100W
Other Standards	ANSI/TIA 1096-A (formerly FCC Part 68-F), IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space	Indoor
EU Directive 2002/95/EC (RoHS)	Yes
MII Order #39 (China RoHS)	EUP 50

Suitability

Suitability - Indoor	Yes

Flammability, LS0H, Toxicity Testing

Safety Listing	c(UL)us Listed

Related Part Numbers

Related Parts	CAT6+ RJ45 Couplers, CAT6+ Coupler Patch Panels

Product Notes

Notes	C601xyyzzzA06 is subdivided as following C6-01-x-yy-zzz-A-06 where C6 stands for performance, 01 stands for jacket type, x stands for termination type, yy stands for color, zzz stands for length, A stands for assembly, and 06 stands for number of cables Use "zzz" part of the code to specify length in feet - 006-050 ft in increments of 1 ft - 055-295 ft in increments of 5 ft. Cable Weight: 0.028 lbs/ft. x 6 cables.
Labeling	Labeled at both ends: Part Number, Serial Number, Termination Scheme, Length, Individual cable identification. Customized Labeling for cable assemblies optional upon request.

Notes

C601xyyzzzA06 is subdivided as following C6-01-x-yy-zzz-A-06 where C6 stands for performance, 01 stands for jacket type, x stands for termination type, yy stands for color, zzz stands for length, A stands for assembly, and 06 stands for number of cables Use "zzz" part of the code to specify length in feet - 006-050 ft in increments of 1 ft - 055-295 ft in increments of 5 ft. Cable Weight: 0.028 lbs/ft. x 6 cables.

Labeling

Labeled at both ends: Part Number, Serial Number, Termination Scheme, Length, Individual cable identification. Customized Labeling for cable assemblies optional upon request.
