Product Number: CACxxxx

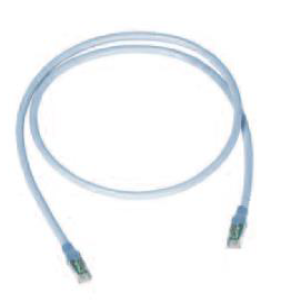

26AWG Category 6A Shielded Patch Cord

26AWG Category 6A Shielded Patch Cord

  • Availability:
    Asia Pacific
  • Status:
    Active
CACxxxx
5 of 5

Specifications

Expand All

Suitable Applications

IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T. 20 and 40 sec. flashing high intensity LED Battery operated (included), push button activated.

Conductor

AWG Material
26 BC - Bare Copper

Total Number of Pairs

4

Overall Nominal Diameter

6.2mm

Packaging

Individually packaged in a clear plastic bag.

Cable Type

S/FTP Cat6A

Dielectric Strength

1000 VAC (RMS)

Current Rating

1.5 A

Insulation Resistance

100 M-Ohm Minimum

Max Contact Resistance

20 mOhm

Voltage Rating

72VDC

UL Temperature Rating

-25°C To +70°C

Min Bend Radius (Overall Cable)

1.040 in

Data Category

Category 6A

TIA/EIA Compliance

Category 6A - TIA-568.2-D ISO/IEC 11801-1

Other Standards

FCC Part 68, Subpart F, IEC 60603-7

Environmental Space

Indoor

MII Order #39 (China RoHS)

EUP 50

Related Parts

10GX Modular Jacks and Couplers, 10GX Patch Panels

Update and Revision

Revision Number: 0.8 Revision Date: 10-15-2025

Update and Revision

Revision Number: 0.8 Revision Date: 10-15-2025


Report An Error

Part Numbers

Item # Color Length
CAC4106007F Blue 7 ft
CAC9106007F Blue 7 ft
CAC4106010F Blue 10 ft
CAC9106010F Blue 10 ft
CAC4108007F Gray 7 ft
CAC9108007F Gray 7 ft
CAC4108010F Gray 10 ft
CAC9108010F Gray 10 ft
CAC4105007F Green 7 ft
CAC9105007F Green 7 ft
CAC4105010F Green 10 ft
CAC9105010F Green 10 ft
CAC4119007F Pink 7 ft
CAC9119007F Pink 7 ft
CAC4119010F Pink 10 ft
CAC9119010F Pink 10 ft
CAC4102007F Red 7 ft
CAC9102007F Red 7 ft
CAC4102010F Red 10 ft
CAC9102010F Red 10 ft
CAC4109007F White 7 ft
CAC9109007F White 7 ft
CAC4109010F White 10 ft
CAC9109010F White 10 ft
CAC4104007F Yellow 7 ft
CAC9104007F Yellow 7 ft
CAC4104010F Yellow 10 ft
CAC9104010F Yellow 10 ft
