Product Number: PFSLDSDxxxML2XY

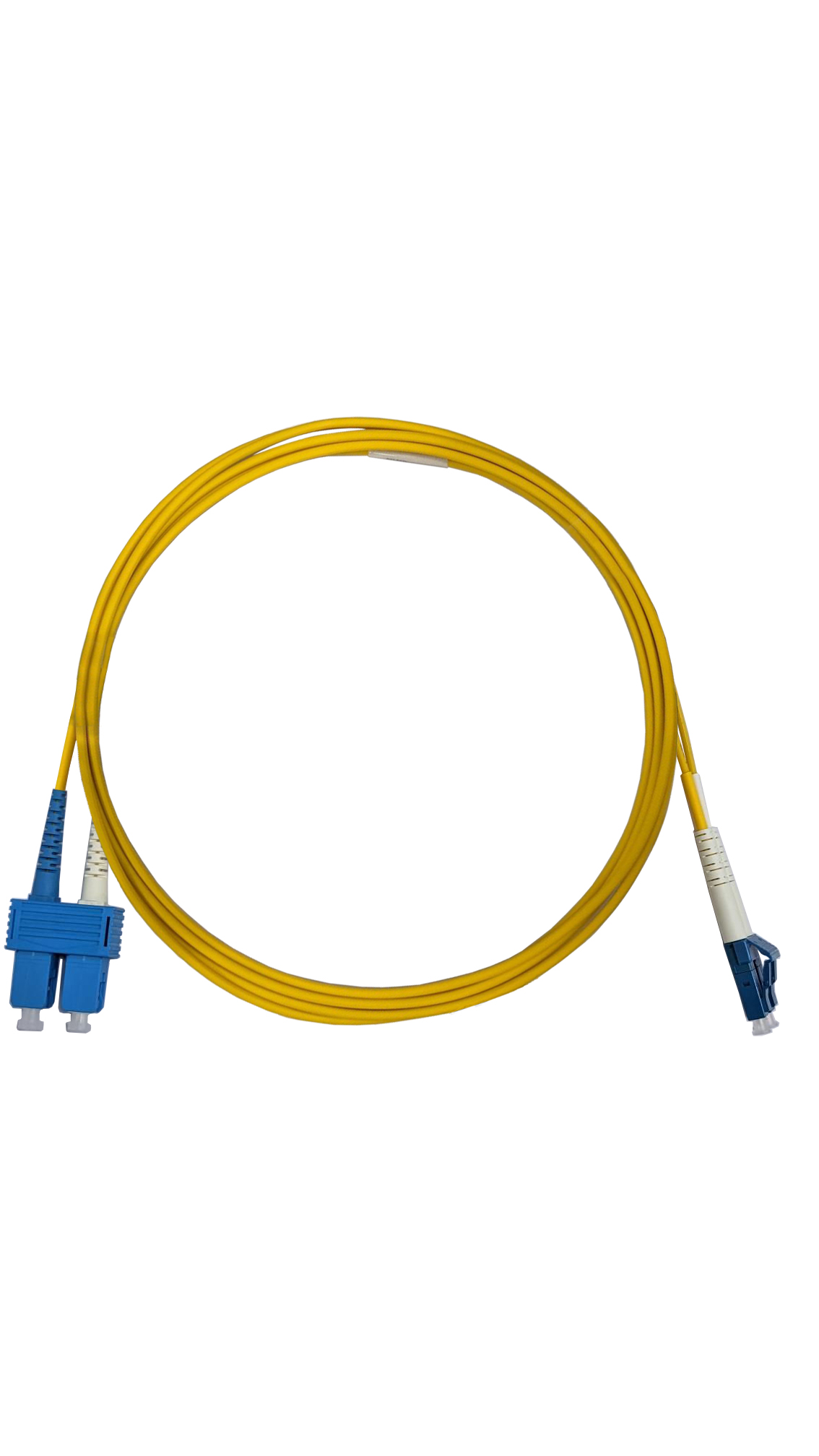

FiberExpress Fiber Patch Cord, OS2, LC Duplex -SC Duplex, LSZH, Duplex Zipcord 2.0mm, A/B, Yellow Jacket
FiberExpress Fiber Patch Cord, OS2, LC Duplex -SC Duplex, LSZH, Duplex Zipcord 2.0mm, A/B, Yellow Jacket
-
Availability:
Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Data Centers, Main Equipment Rooms,Telecommunications Rooms and Work Area |
|---|
Fiber Specifications
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
9 µm |
|
Fiber Count |
2 |
Physical Specifications
Connectors
| Description | Type | Boot Color |
|---|---|---|
| Connector A (Inside End) | LC Duplex | White |
| Connector B (Outside End) | SC Duplex | Blue |
Assembly Cable
| Jacket Color |
|---|
| Yellow |
Optical Characteristics
|
Polarity Identification |
A/B |
|---|
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | LC Duplex | 0.30 dB | 55 dB |
| Connector B (Outside End) | SC Duplex | 0.30 dB | 55 dB |
Mechanical Characteristics
|
Crush Resistance |
500N/100mm |
|---|
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
TIA/EIA Compliance |
TIA 604-10 & TIA 604-3, TIA-568.3-D |
|
ISO/IEC Compliance |
IEC 61754-20 |
|
European Halogen Free Standards |
IEC 60754-1 - Halogen Amount = IEC 60754 |
|
European Directive Compliance |
EU Directive 2011/65/EU (RoHS 2) |
Product Notes
|
Related Parts |
FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes, Workstation Outlets |
|---|---|
|
Notes |
Insertion and Return Loss values are for individual connectors on each side, Packaging: Individually packaged in a clear plastic bag (put up length from 001M to 029M), Individually packaged on a reel (put up length from 030M to 500M) |
History
|
Update and Revision |
Revision Number: 0.44 Revision Date: 12-07-2023 |
|---|
