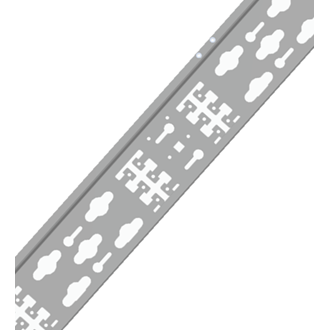

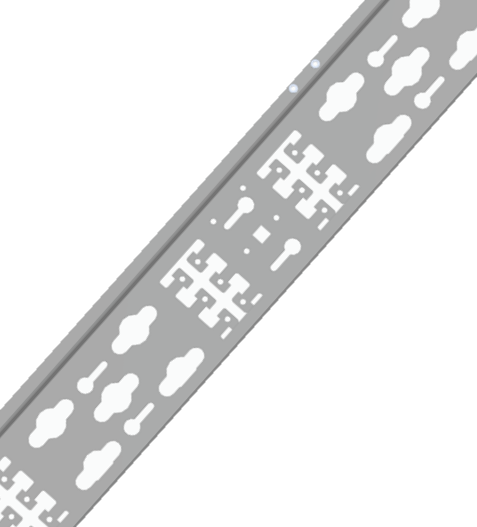

CABLE MAN VERT LACING E-SERIES

EDAV5xx0-Series

Vertical Lacing Panel For E-Series END, ESN and ESH.

Request Quote

Specifications

Report An Error

Environmental Space	Indoor

Width	85 mm

Material	Steel
Color	Metallic

EU Directive 2011/65/EU (RoHS 2)	Yes
MII Order #39 (China RoHS)	EUP 50

Included Parts	The package comes with screws for installation
Packaging	Individually packed.
Update and Revision	Revision Number: 0.119 Revision Date: 10-11-2024

Part Numbers

Part #	Height	Min. cabinet size ESN / ESH / END 800 wide	Min. cabinet size END 600 wide
EDAV5320	1225 mm	32U	37U
EDAV5370	1450 mm	37U	42U
EDAV5420	1695 mm	42U	47U
EDAV5450	1805 mm	45U	N/A
EDAV5470	1895 mm	47U	N/A
