Fiber Raceway - FRAE3Y1

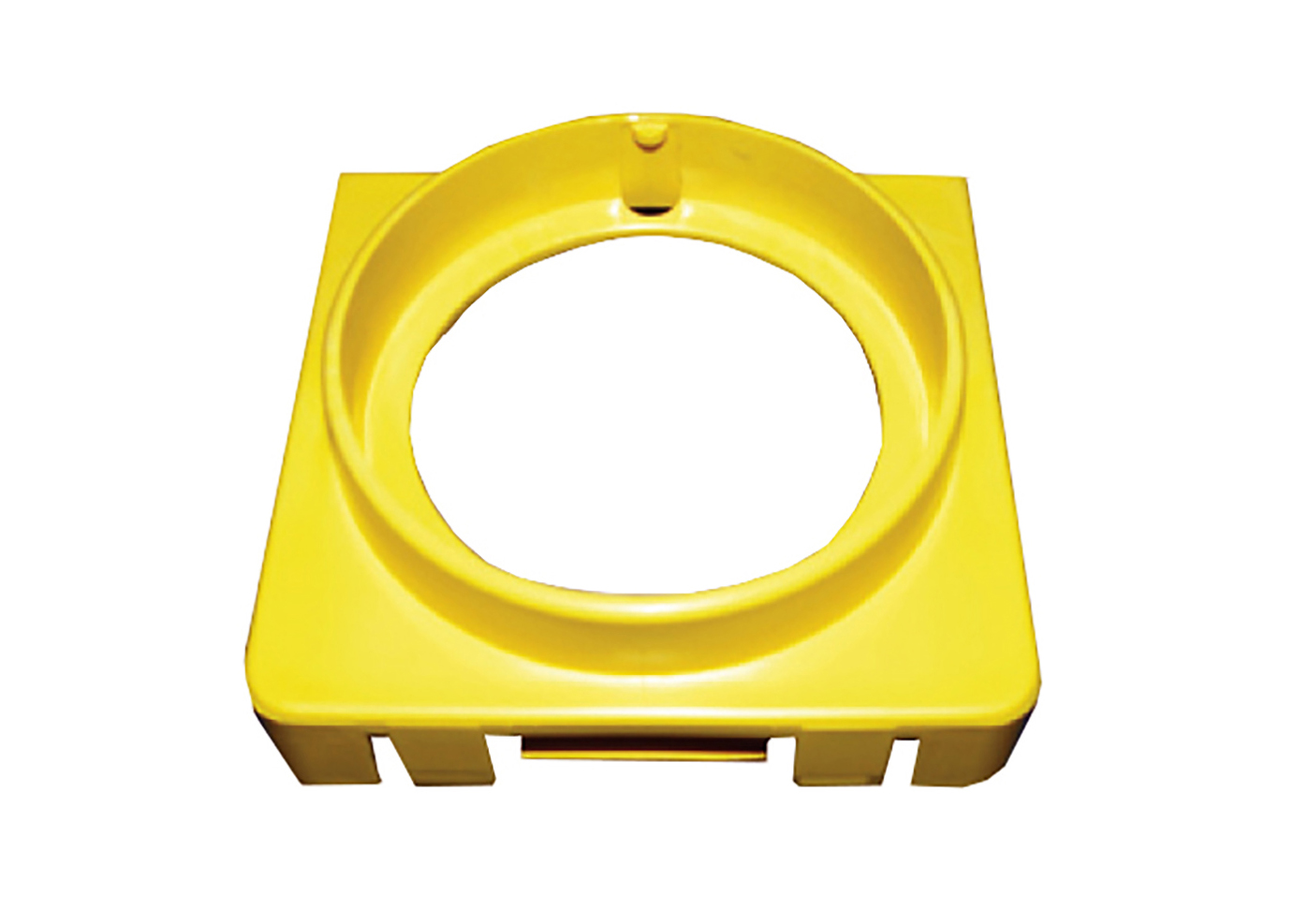

Fiber Raceway End Cap, 4x4, with 88mm Tube Outlet, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.158 lbs
Overall Height	1.653 in (41.986 mm
Overall Width	4.330 in
Overall Length	4.094 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	The duct end cover is provided with one large size diameter hole and connection, that allows fitting a large size convoluted, flexible tube. The tube is Ø75mm ID/Ø88mm OD. The convoluted tube allows optical fibre cords to be dropped in from the duct to the lower transmission equipment. The end cover snaps simply into the duct slots of a 90°, down elbow and can be removed with a screwdriver, should the system need extending.

Notes

The duct end cover is provided with one large size diameter hole and connection, that allows fitting a large size convoluted, flexible tube. The tube is Ø75mm ID/Ø88mm OD. The convoluted tube allows optical fibre cords to be dropped in from the duct to the lower transmission equipment. The end cover snaps simply into the duct slots of a 90°, down elbow and can be removed with a screwdriver, should the system need extending.
