Fiber Raceway - FRAE4Y2

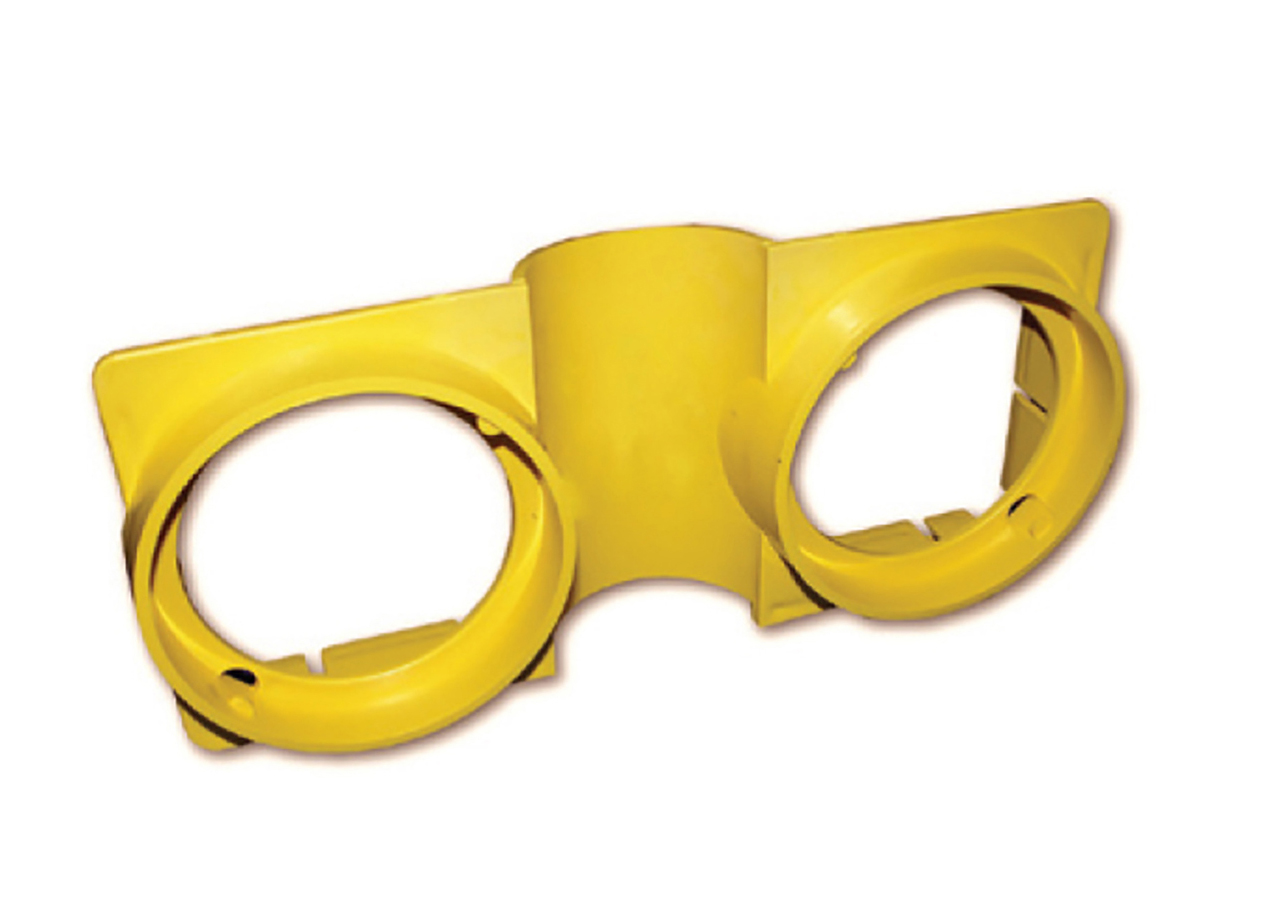

Fiber Raceway End Cap, 4x8, with 2x88mm Tube Outlet, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.26 lbs
Overall Height	1.692 in (42.977 mm
Overall Width	9.251 in
Overall Length	4.055 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	The duct end cover is provided with two large size dia holes and connection, that allows fitting of two large size convoluted, flexible tubes. The tubes are 75mm ID/88mm OD. The convoluted tube allows optical fibre cords to be dropped off from the 220mm X 100mm duct to lower transmission equipment. The end cover snaps simply into the duct slots of a 90 degree, down elbow and can be removed with a screwdriver should the system need extending.

Notes

The duct end cover is provided with two large size dia holes and connection, that allows fitting of two large size convoluted, flexible tubes. The tubes are 75mm ID/88mm OD. The convoluted tube allows optical fibre cords to be dropped off from the 220mm X 100mm duct to lower transmission equipment. The end cover snaps simply into the duct slots of a 90 degree, down elbow and can be removed with a screwdriver should the system need extending.
