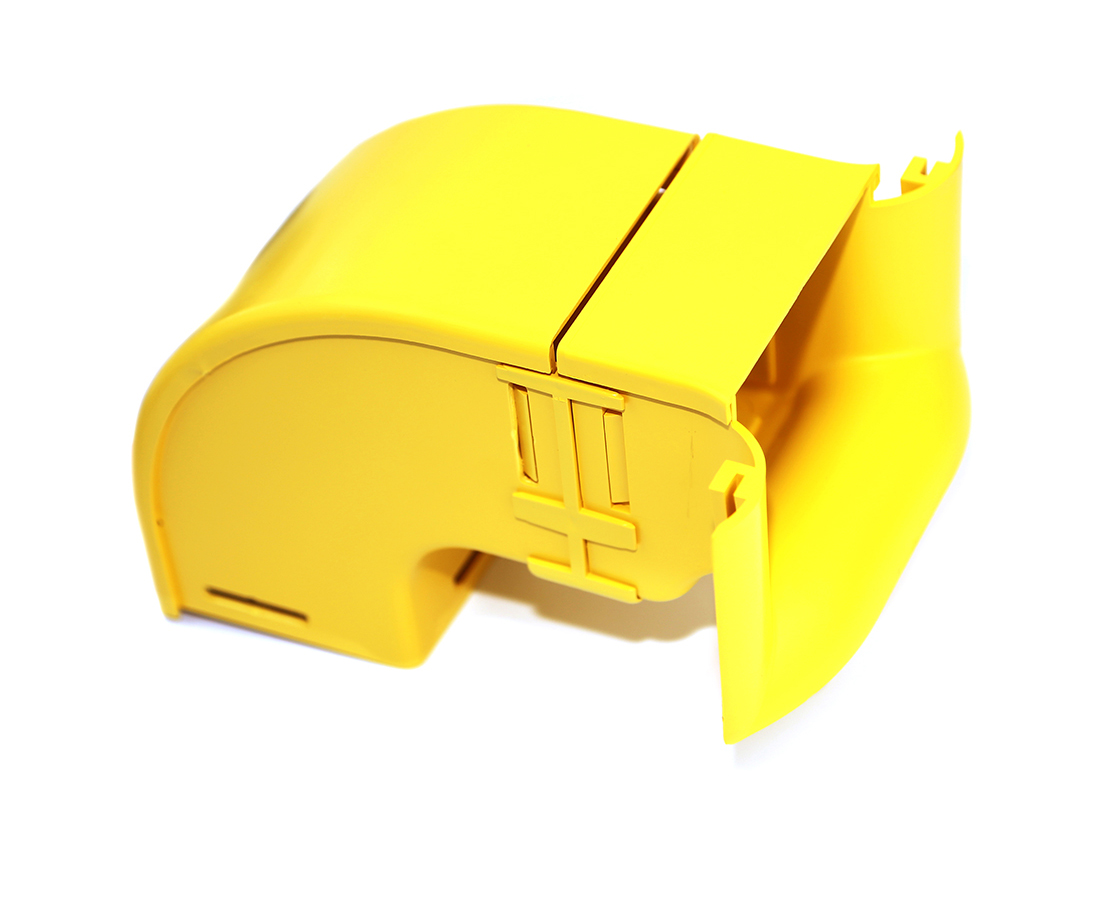

Fiber Raceway - FRCB3YL9DK

Fiber Raceway Break-Out Kit, 4x4 With Lid, 90 Degree Bend Down

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.943 lbs
Overall Height	6.692 in (169.977 mm
Overall Width	10.236 in
Overall Length	8.070 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94 VO rated

Product Notes

Notes	The 90-degree down elbow kit is a 100mm vertical drop off with an external lid, fitted with an outlet guide, using a standard 100mm duct joiner. This outlet guide (eg. an outlet trumpet) enables optical fibre cords to be dropped-off to a lower duct, at a controlled radius of 30mm. It has removable lids that allow quick and easy installation of optical fibre cords within the elbow. This is usually installed where optical fibre cords are to be dropped off below. There is one 100mm outlet to connect to other duct items, using either: a standard joiner or a slotless joiner; that are available separately.

Notes

The 90-degree down elbow kit is a 100mm vertical drop off with an external lid, fitted with an outlet guide, using a standard 100mm duct joiner. This outlet guide (eg. an outlet trumpet) enables optical fibre cords to be dropped-off to a lower duct, at a controlled radius of 30mm. It has removable lids that allow quick and easy installation of optical fibre cords within the elbow. This is usually installed where optical fibre cords are to be dropped off below. There is one 100mm outlet to connect to other duct items, using either: a standard joiner or a slotless joiner; that are available separately.
