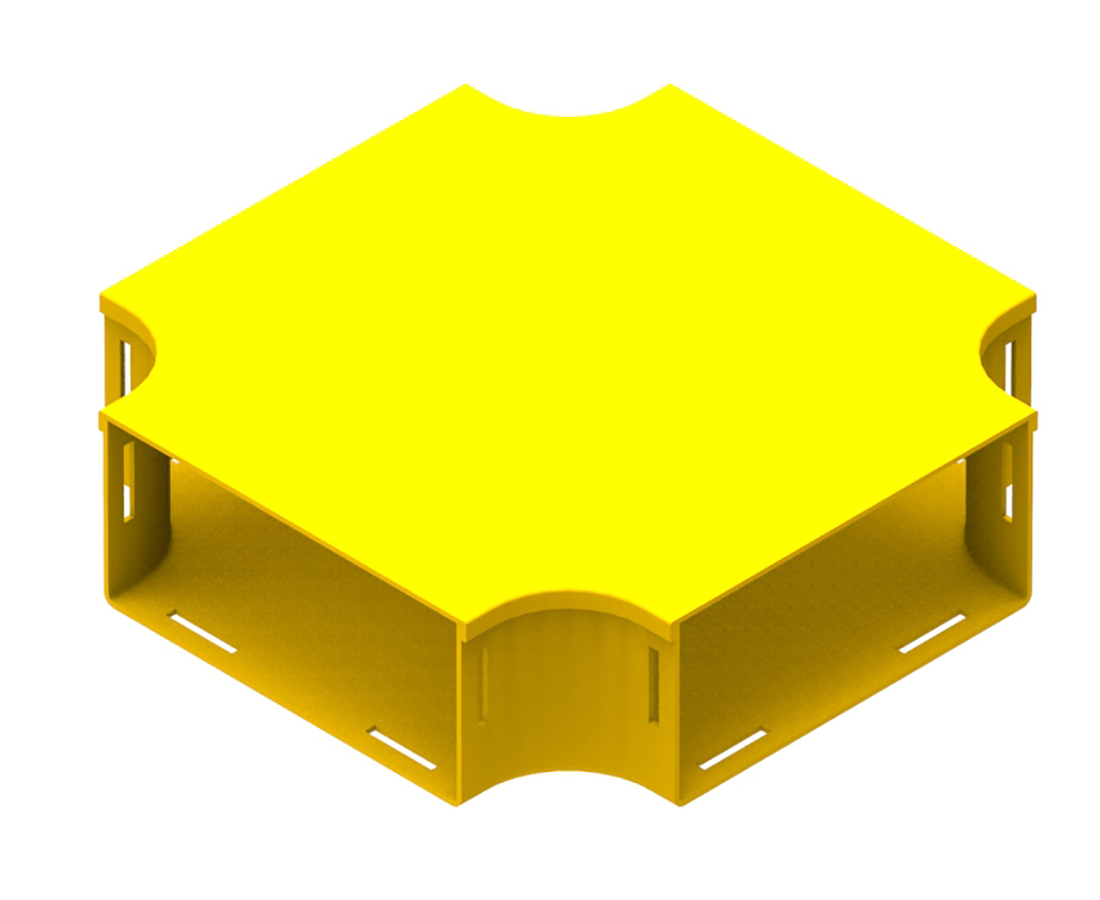

Fiber Raceway - FRCC4YL

Fiber Raceway Cross Connector, 8x8 (220mm x 220mm), With Lid

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	2.976 lbs
Overall Height	4.133 in (104.978 mm
Overall Width	14.173 in
Overall Length	14.173 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	This connector is used to establish a right-angled intersection between two 220-mm ducts. I.e. all 4 arms of the connector are connected to 220mm duct or other components via a: standard joiner or a slotless joiner. Note: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.

Notes

This connector is used to establish a right-angled intersection between two 220-mm ducts. I.e. all 4 arms of the connector are connected to 220mm duct or other components via a: standard joiner or a slotless joiner. Note: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.
