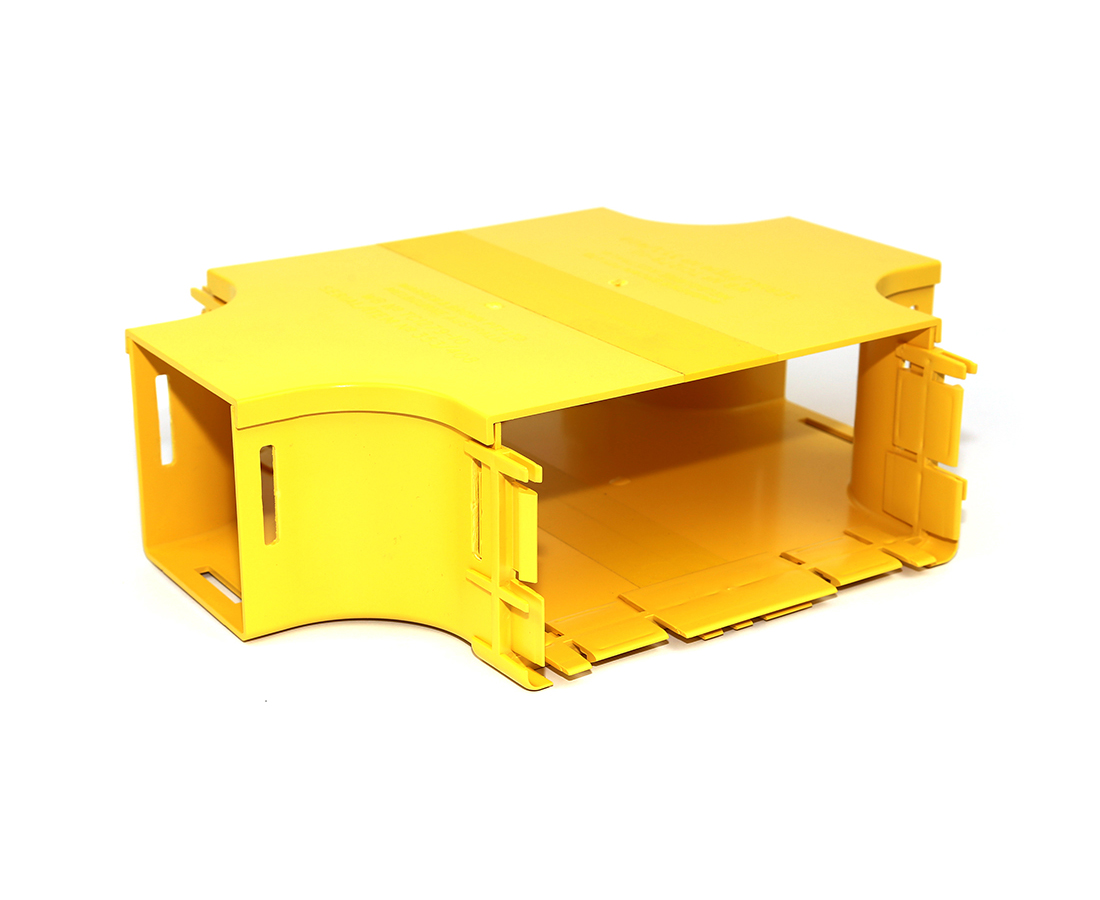

Fiber Raceway - FRCC4YL2

Fiber Raceway Reduction Cross Connector, 4x8 (220mm x 100mm), With Lid

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	1.719 lbs
Overall Height	4.133 in (104.978 mm
Overall Width	9.685 in
Overall Length	14.566 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	This cross connector is used to establish a right, angled intersection between 220 mm and 100mm duct. i.e. 2 arms of the connector are connected to both 220mm and 100mm duct, or other components, using either: standard joinersor slotless joiners. NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.

Notes

This cross connector is used to establish a right, angled intersection between 220 mm and 100mm duct. i.e. 2 arms of the connector are connected to both 220mm and 100mm duct, or other components, using either: standard joinersor slotless joiners. NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.
