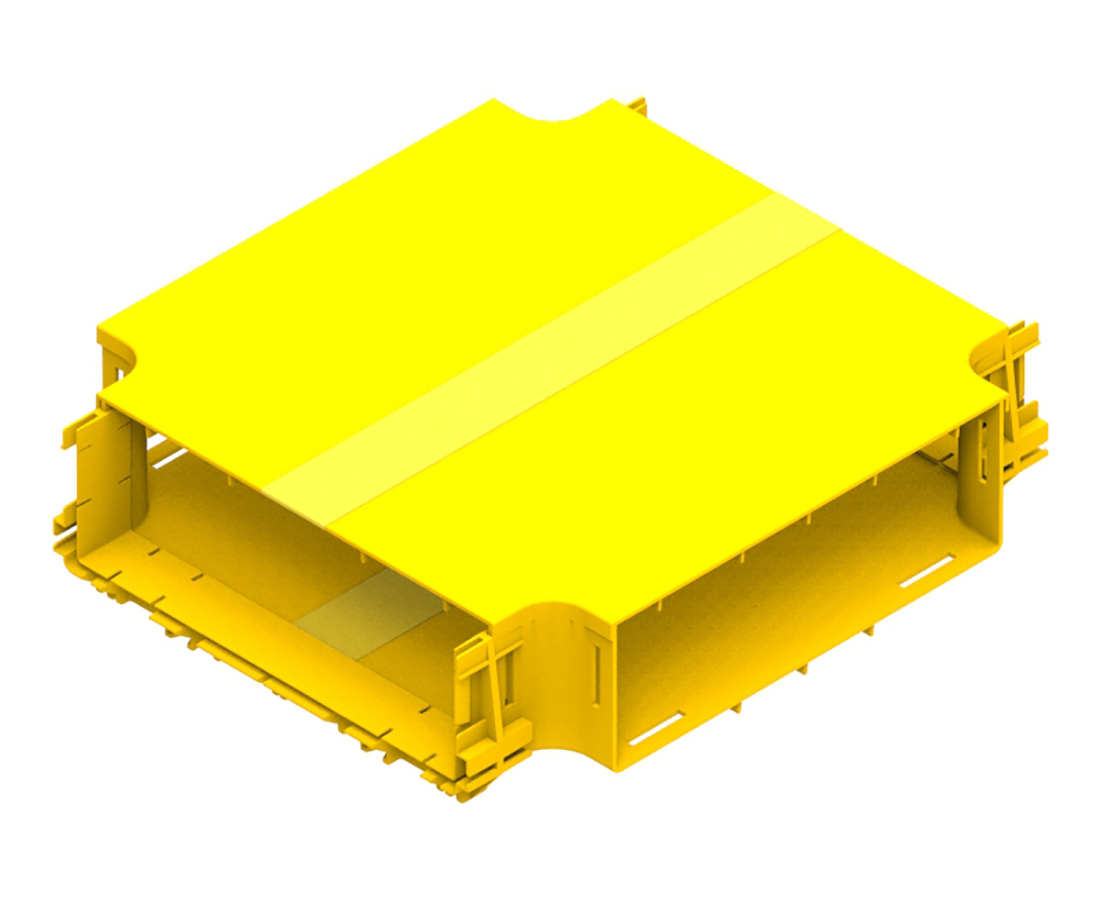

Fiber Raceway - FRCC8YL

Fiber Raceway Cross Connector, 12x12 (300mm x 300mm), With Lid

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	3.858 lbs
Overall Height	4.133 in (104.978 mm
Overall Width	15.944 in
Overall Length	15.944 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94‐VO rated

Product Notes

Notes	This cross connector is used to establish a right-angled intersection between two 300-mm ducts. I.e. all 4 arms of the connector are connected to 300mm duct or other components, using the standard joiner. 2 x Standard Joiners are supplied. A slotless joiner for 300mm duct is also available NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.

Notes

This cross connector is used to establish a right-angled intersection between two 300-mm ducts. I.e. all 4 arms of the connector are connected to 300mm duct or other components, using the standard joiner. 2 x Standard Joiners are supplied. A slotless joiner for 300mm duct is also available NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector.
