Fiber Raceway - FRCDUYL1SK

Fiber Raceway Drop Off Tube 50mm for 100mm; 220mm Duct & 300mm

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.264 lbs
Overall Height	3.937 in (100.000 mm
Overall Width	8.267 in
Overall Length	3.149 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

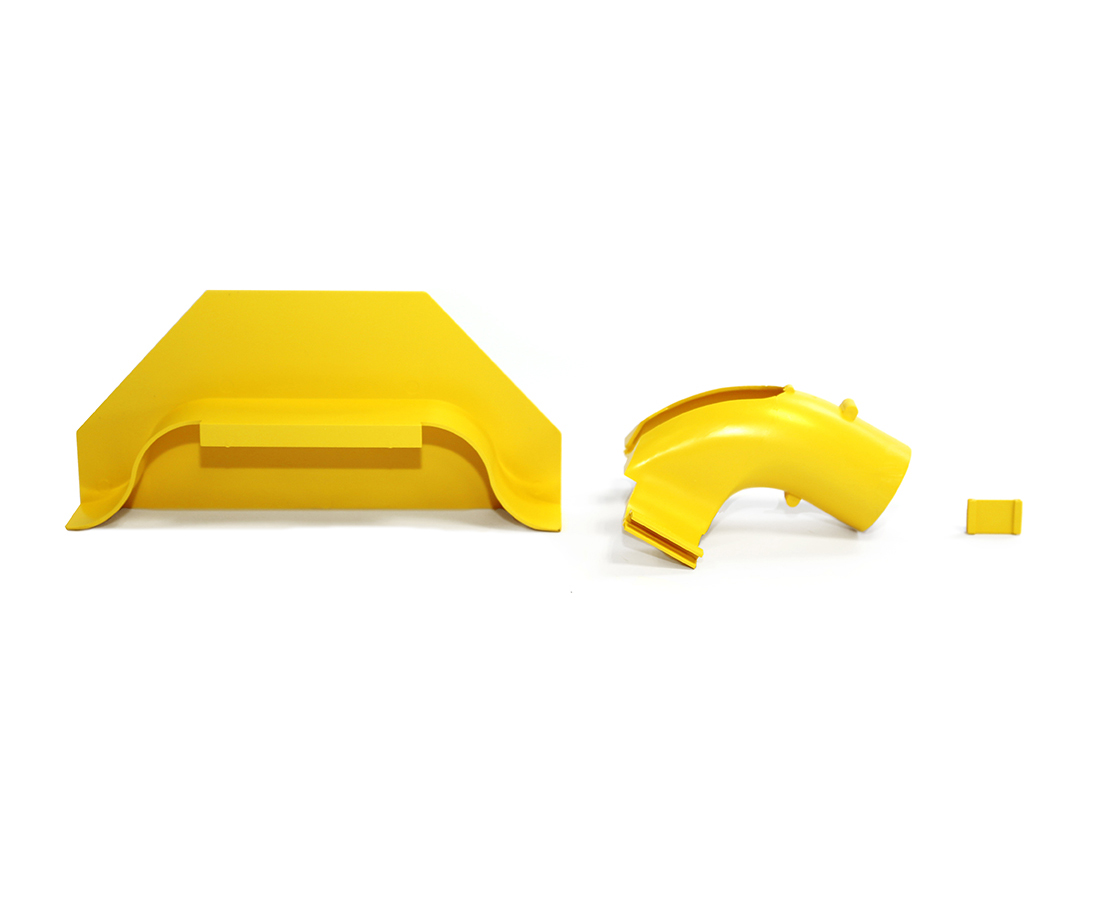

Notes	The drop off kit is used to provide a safe exit for fibre cords to equipment below or above 300, 220, 100 & 50mm ducting. It fits into a cut out provided by the cut out tool and includes: A spreader to lock the drop off connector, and a RAMP OFF, The ramp off also clips into the same cut out (when fitting to 300, 220 & 100mm ducting). It provides a tubular exit point over which a Ø44mm ID/ Ø50 mm OD flexible (or split) convoluted tube can be fitted. Also convoluted tubing adaptor kit can be used.

Notes

The drop off kit is used to provide a safe exit for fibre cords to equipment below or above 300, 220, 100 & 50mm ducting. It fits into a cut out provided by the cut out tool and includes: A spreader to lock the drop off connector, and a RAMP OFF, The ramp off also clips into the same cut out (when fitting to 300, 220 & 100mm ducting). It provides a tubular exit point over which a Ø44mm ID/ Ø50 mm OD flexible (or split) convoluted tube can be fitted. Also convoluted tubing adaptor kit can be used.
