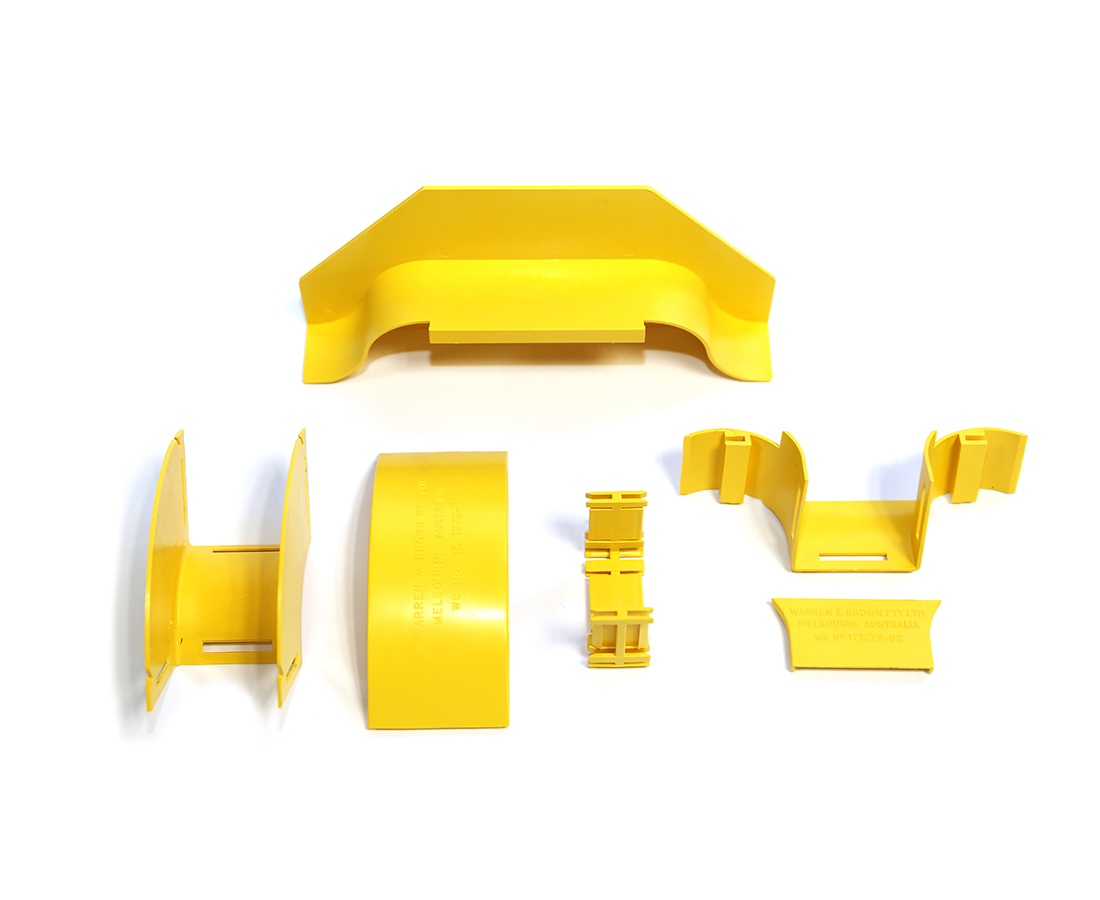

Fiber Raceway - FRCDUYL3SK

Fiber Raceway Drop Off Kit 50mm for 100mm; 220mm & 300mm

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.308 lbs
Overall Height	4.330 in (109.982 mm
Overall Width	9.055 in
Overall Length	2.362 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	The break out kit is used to provide a safe exit for optical fibre cords at any point in 300, 220 & 100mm ducting, to 50mm duct, feeding in a vertical plane. It clips straight into a cut out provided by the cut out tool, or cut out jig, and provides a 90° down elbow, over which a 50mm slotted duct or straight duct can be fitted, using a 50mm standard joiner.These items are available separately. A ramp off is also provided to maintain fibre bending radii, up to the break out.

Notes

The break out kit is used to provide a safe exit for optical fibre cords at any point in 300, 220 & 100mm ducting, to 50mm duct, feeding in a vertical plane. It clips straight into a cut out provided by the cut out tool, or cut out jig, and provides a 90° down elbow, over which a 50mm slotted duct or straight duct can be fitted, using a 50mm standard joiner.These items are available separately. A ramp off is also provided to maintain fibre bending radii, up to the break out.
