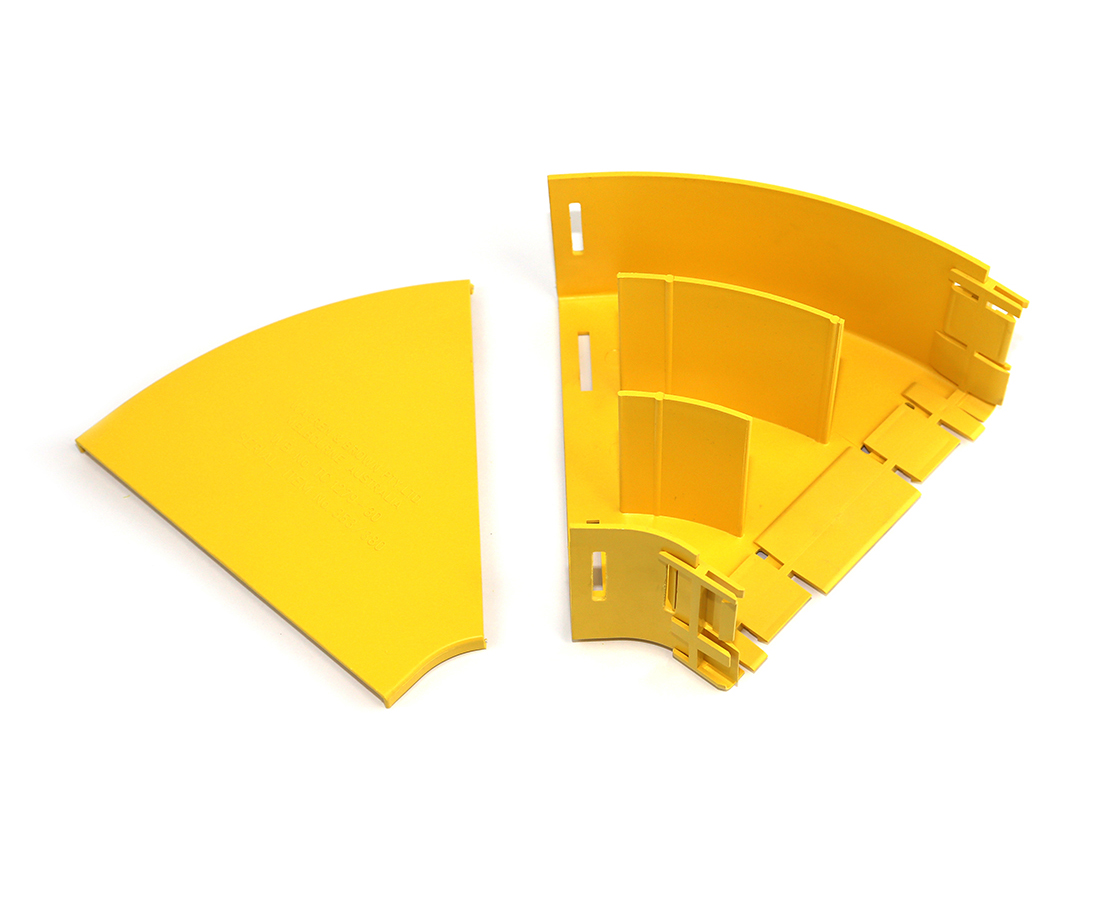

Fiber Raceway - FRCE4YN4H

Fiber Raceway Elbow, 4x8, 45 Degree Horizontal, without Lid, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.952 lbs
Overall Height	4.133 in (104.978 mm
Overall Width	10.236 in
Overall Length	9.448 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Flame retardant plastic

Product Notes

Notes	This elbow provides a method of diverting the 220mm duct system around objects. It can be used with a tee to feed a duct at a 45-degree angle to the main system. The elbow can also be used in pairs to align ducts and other components with an offset. There are two 220-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner or a slotless joiner that are available separately.

Notes

This elbow provides a method of diverting the 220mm duct system around objects. It can be used with a tee to feed a duct at a 45-degree angle to the main system. The elbow can also be used in pairs to align ducts and other components with an offset. There are two 220-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner or a slotless joiner that are available separately.
