Fiber Raceway - FRCE4YN9U

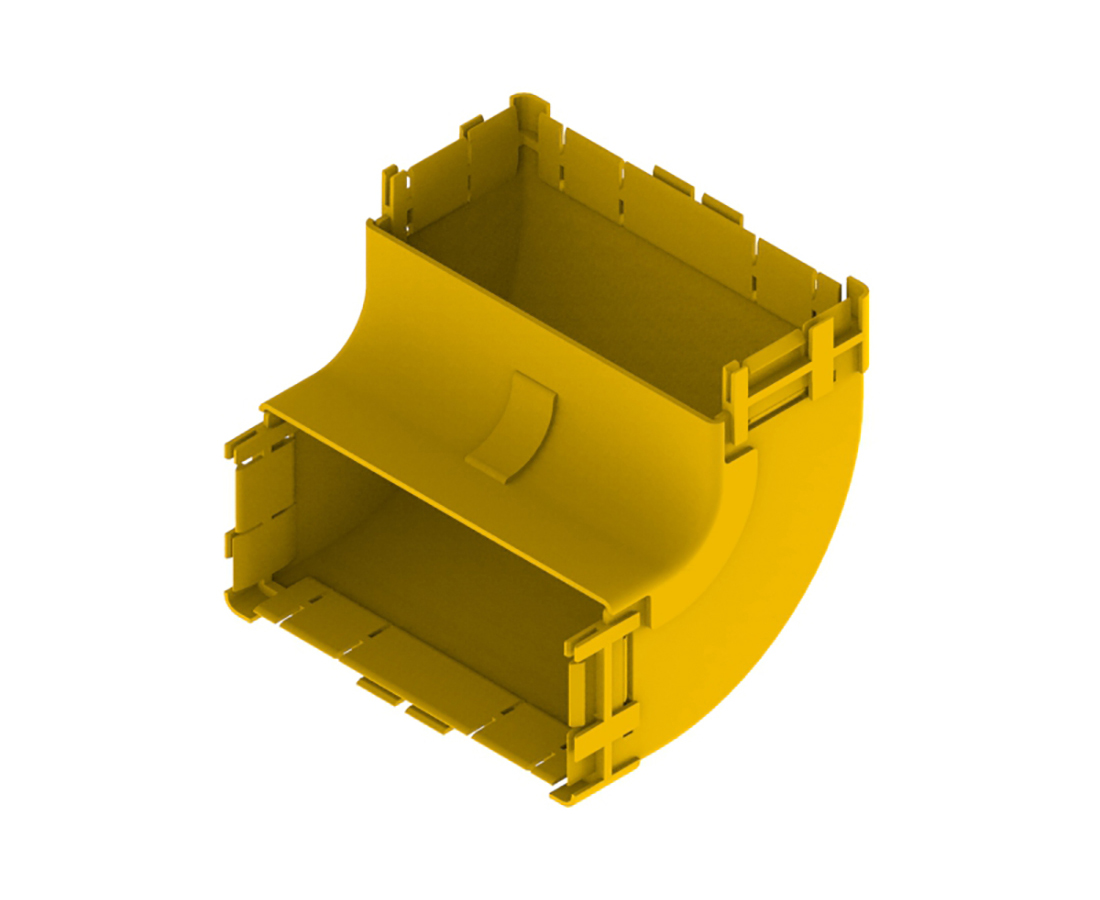

Fiber Raceway Elbow, 4x8, 90 Degree Up, without Lid, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.533 lbs
Overall Height	5.039 in (127.991 mm
Overall Width	4.330 in
Overall Length	9.055 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	The 30-degree up elbow is a 220-mm angled lead off with an internal lid, so that new optical fibre cords can be installed within the elbow and existing fibre cords removed, where necessary. This is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 220-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner or a slotless joiner that are available separately.

Notes

The 30-degree up elbow is a 220-mm angled lead off with an internal lid, so that new optical fibre cords can be installed within the elbow and existing fibre cords removed, where necessary. This is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 220-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner or a slotless joiner that are available separately.
