Fiber Raceway - FRCU3YL

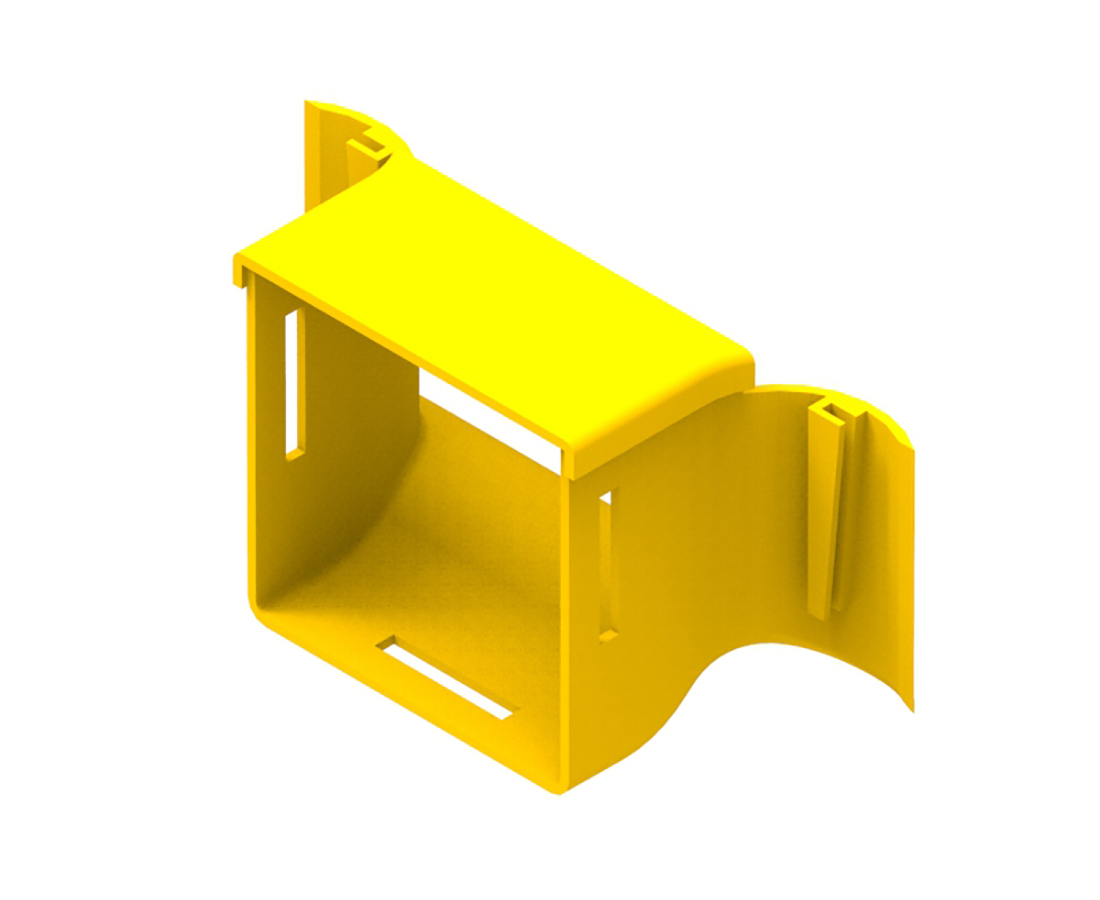

Fiber Raceway Tee Break-Out, 4x4, 100mm, with Lid, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.132 lbs
Overall Height	4.094 in (103.988 mm
Overall Width	7.952 in
Overall Length	3.464 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	The break out assembly is used to provide a safe, exit for fibre to equipment, at any point in either a 300, 220 or 100 mm ducting system. It is normally used to provide a break out in existing duct systems, and clips straight into a cut out provided by the cut out tool or made using the cut out jig. When used as described, it provides a 100 mm outlet; to which any standard 100 mm part can be fitted using either: the standard joiner or the slotless joiner which are available separately. It can also be used with vertical duct to feed patch cords down to a rack. (Used as an Trumpet Outlet).

Notes

The break out assembly is used to provide a safe, exit for fibre to equipment, at any point in either a 300, 220 or 100 mm ducting system. It is normally used to provide a break out in existing duct systems, and clips straight into a cut out provided by the cut out tool or made using the cut out jig. When used as described, it provides a 100 mm outlet; to which any standard 100 mm part can be fitted using either: the standard joiner or the slotless joiner which are available separately. It can also be used with vertical duct to feed patch cords down to a rack. (Used as an Trumpet Outlet).
