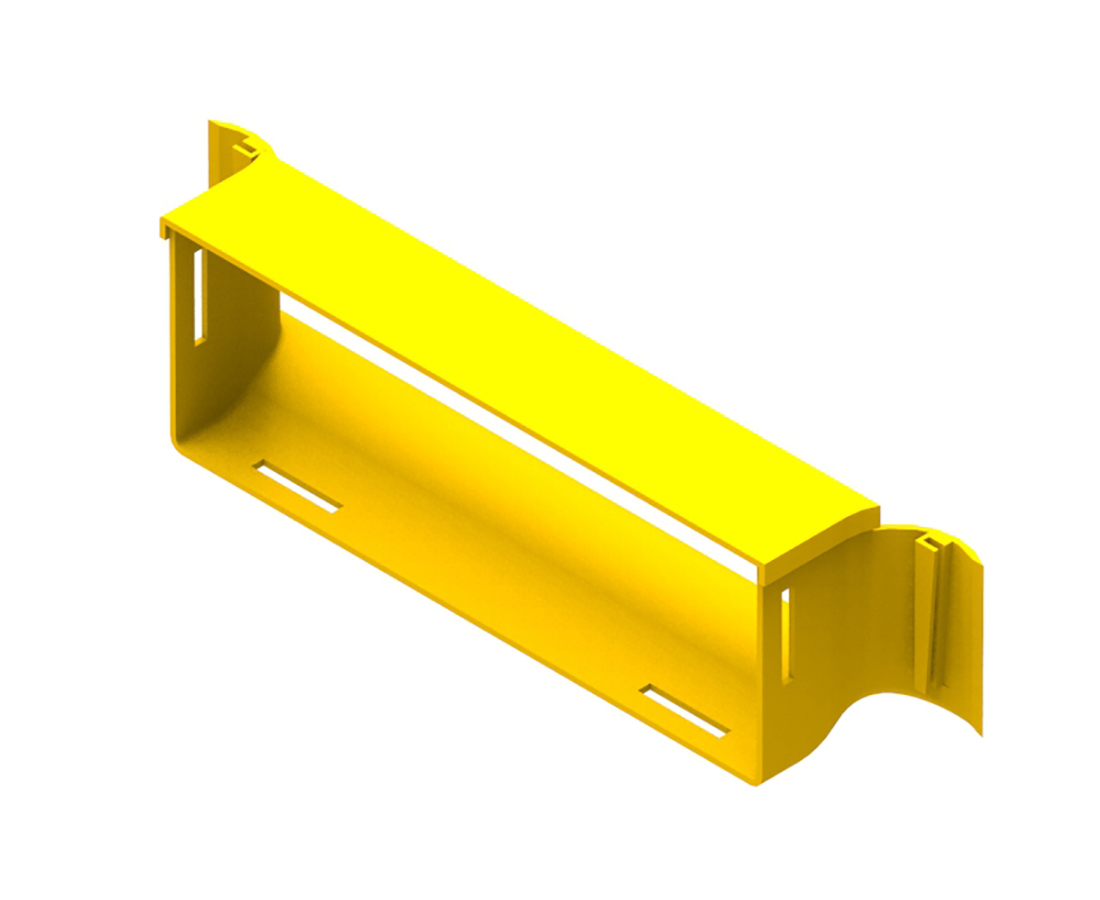

Fiber Raceway - FRCU5YL

Fiber Raceway Tee Break-Out, 4x12, 300mm, with Lid, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.511 lbs
Overall Height	3.818 in
Overall Width	15.944 in
Overall Length	4.527 in

Inner Jacket

Inner Jacket	Inner Jacket

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94‐VO rated

Product Notes

Notes	The break out assembly is used to provide a safe, exit for optical fibre cord/s to equipment, at any point in a 300mm ducting system. It is normally used to provide a break out in existing duct systems, and clips straight into a cut out provided by the cut out tool or made using the cut out jig; which are available separately. A cut out width of 345mm –0/+ 2mm needs to be made in the side of the duct. This is about 2.3 cutting operations of the tool, that makes a 145mm wide cut. When used as described, the break out assembly provides a 300mm curved outlet; to which any standard 300mm part can be fitted using the slotless joiner; available separately. A lid is supplied. It can also be used with vertical duct to feed patch cords down to a rack. (Used as a Trumpet Outlet)

Notes

The break out assembly is used to provide a safe, exit for optical fibre cord/s to equipment, at any point in a 300mm ducting system. It is normally used to provide a break out in existing duct systems, and clips straight into a cut out provided by the cut out tool or made using the cut out jig; which are available separately. A cut out width of 345mm –0/+ 2mm needs to be made in the side of the duct. This is about 2.3 cutting operations of the tool, that makes a 145mm wide cut. When used as described, the break out assembly provides a 300mm curved outlet; to which any standard 300mm part can be fitted using the slotless joiner; available separately. A lid is supplied. It can also be used with vertical duct to feed patch cords down to a rack. (Used as a Trumpet Outlet)
