Fiber Raceway - FRCV3YLN

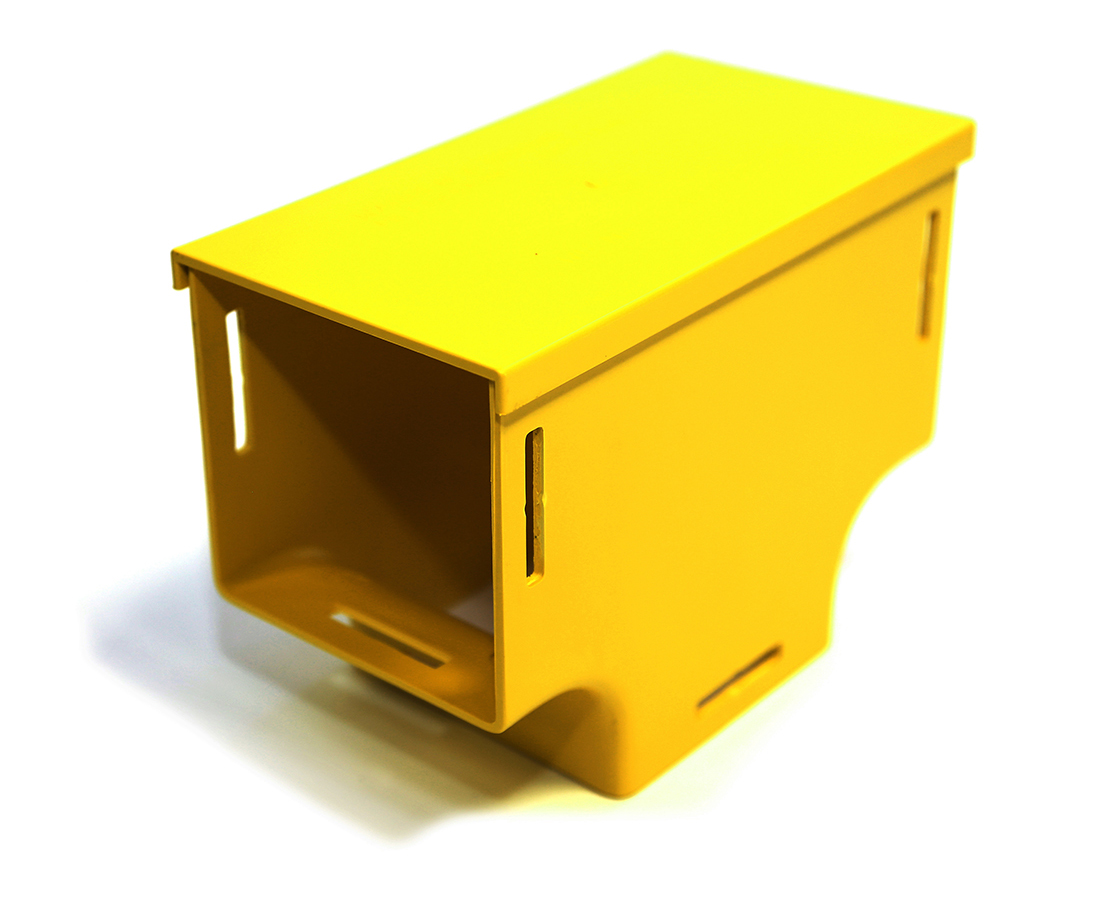

Fiber Raceway Vertical Tee, 4x4, 100mm x 100mm Drop Off, Lid, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	0.716 lbs
Overall Height	5.905 in (149.987 mm
Overall Width	7.952 in
Overall Length	4.409 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94‐VO rated

Product Notes

Notes	The entry suite is basically a 100mm vertical drop off point in a 100mm horizontal duct system. This is usually installed where a large number of optical fibre cords are to be dropped off below. eg. in optical fibre distribution frames. It provides free flow for the ongoing fibres and strain relief for those exiting down the 100mm vertical section. There are two 100mm horizontal outlets, and a 100mm vertical outlet which use either: standard joiners or a slotless joiner. These are available separately.

Notes

The entry suite is basically a 100mm vertical drop off point in a 100mm horizontal duct system. This is usually installed where a large number of optical fibre cords are to be dropped off below. eg. in optical fibre distribution frames. It provides free flow for the ongoing fibres and strain relief for those exiting down the 100mm vertical section. There are two 100mm horizontal outlets, and a 100mm vertical outlet which use either: standard joiners or a slotless joiner. These are available separately.
