Fiber Raceway - FRD6TYL

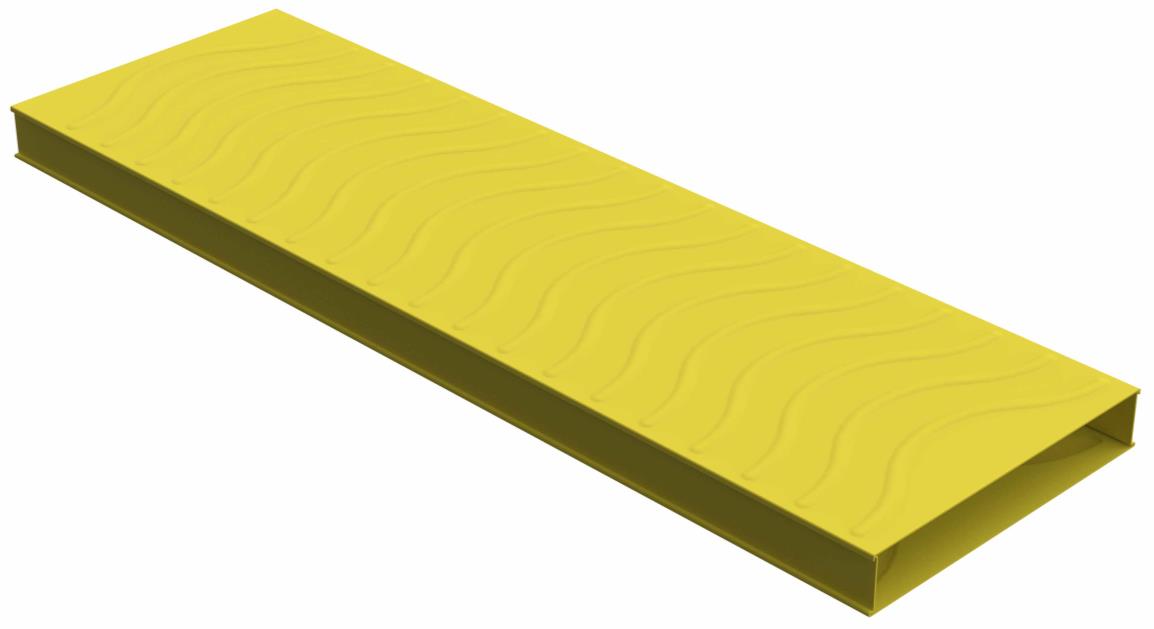

Fiber Raceway Duct & Snap On Lid, 4x24, 2 meters long, Yellow

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Overall Height	3.937 in
Overall Width	24.409 in
Overall Length	78.740 in

Inner Jacket

Inner Jacket	Inner Jacket

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Fire retardant plastic, Halogen free, UL94-VO rated

Product Notes

Notes	It is recommended that a duct be filled to about 50% of its depth with optical fibre cords. Thus, a 600mm wide duct typically can carry about 6,860 of Ø2.0mm optical fibre cords or about 2,970 of Ø3mm optical fibre cords, without causing excessive stress on them. The duct is made from a sturdy engineered plastic with a non – halogen, fire retardant properties. The duct connects to other 600mm duct sections and various elbows, tee’s, crosses, reducers, adapters etc., using the 600mm joiner (Part No: TC1279-410A). These items are available separately. A 600mm duct mounting bracket kit (Part No: TC1279-438A) is available separately.

Notes

It is recommended that a duct be filled to about 50% of its depth with optical fibre cords. Thus, a 600mm wide duct typically can carry about 6,860 of Ø2.0mm optical fibre cords or about 2,970 of Ø3mm optical fibre cords, without causing excessive stress on them. The duct is made from a sturdy engineered plastic with a non – halogen, fire retardant properties. The duct connects to other 600mm duct sections and various elbows, tee’s, crosses, reducers, adapters etc., using the 600mm joiner (Part No: TC1279-410A). These items are available separately. A 600mm duct mounting bracket kit (Part No: TC1279-438A) is available separately.
