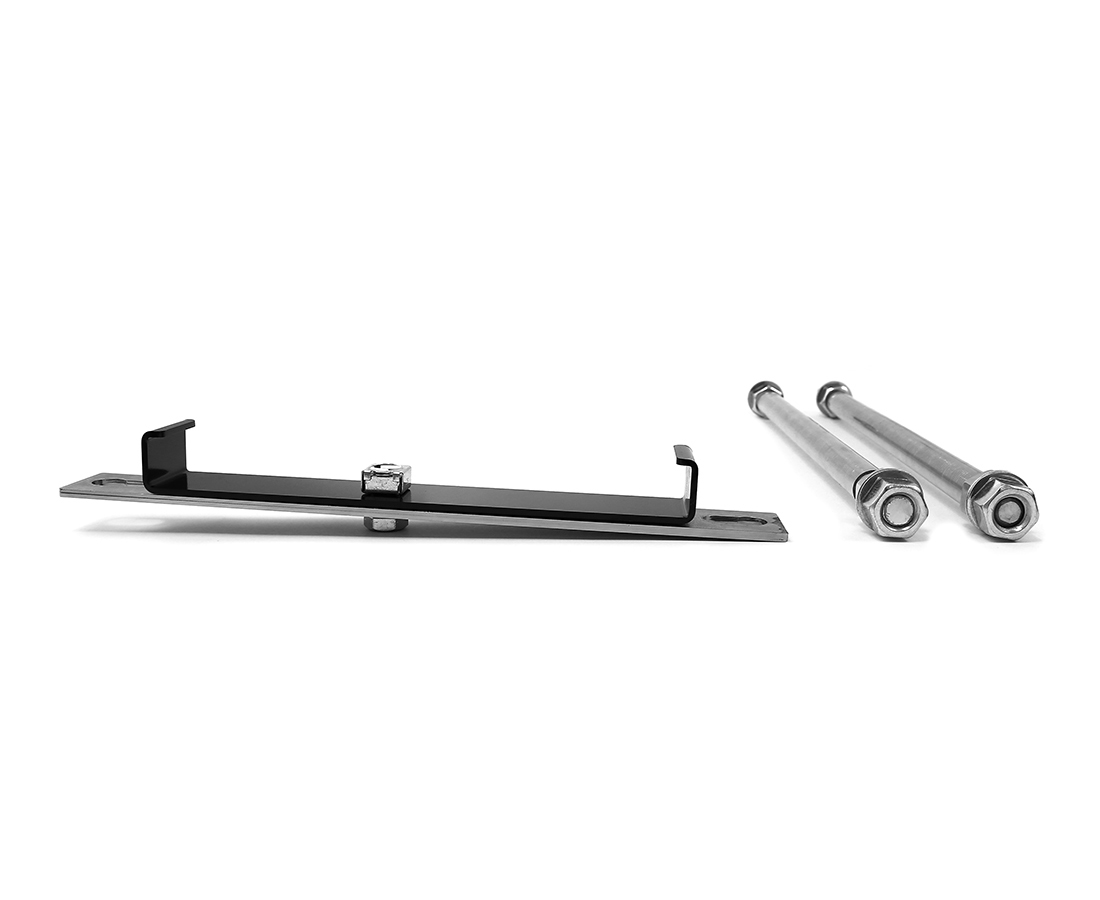

Fiber Raceway - FRMT46

Fiber Raceway Mounting Trapeze Style Kit, 220mm, Includes 16mm Rods

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	3.747 lbs
Overall Height	0.787 in (19.990 mm
Overall Width	1.574 in
Overall Length	15.748 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Mild Steel, Nickel Plated

Product Notes

Notes	The suspension mounting bracket kit is used to attach either 220mm (or 100mm) plastic duct to existing steelwork, from above. It consists of: 2 x M16 threaded rods with a straight bracket and fasteners, which enables fitting of a duct - mounting bracket to the straight bracket. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage.

Notes

The suspension mounting bracket kit is used to attach either 220mm (or 100mm) plastic duct to existing steelwork, from above. It consists of: 2 x M16 threaded rods with a straight bracket and fasteners, which enables fitting of a duct - mounting bracket to the straight bracket. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage.
