Fiber Raceway - FRMV4K

Fiber Raceway Mounting Vertical Strut Kit, Suits 220mm Duct

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	1.212 lbs
Overall Height	4.055 in (102.997 mm
Overall Width	1.574 in
Overall Length	7.480 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Mild steel, Nickel Plated finish

Product Notes

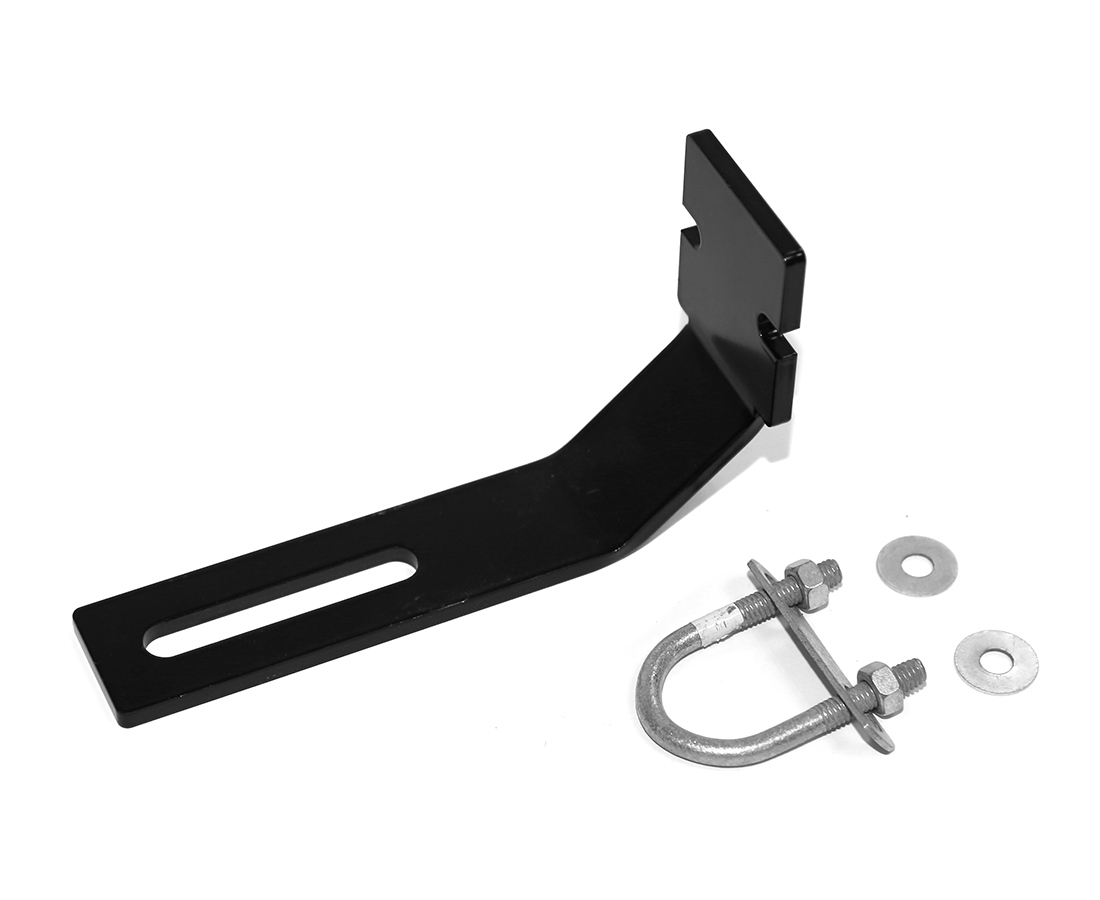

Notes	This clamp is a means of attaching either a 220 or 100mm duct system to (up to) 30mm (1”) diameter tube or 25mm (1”) square tubes in an under floor system. It consists of a slotted bracket and U bolt which fit the standard round or square vertical used in most sub floor systems. It is attached to the tube by the bracket and U-bolt, which clamp the tube between the bracket and U-bolt. Two 8mm dia oversize washers are included to aid clamping to square vertical RHS tube, as well as round tube. A single long slot provides a range of horizontal adjustment. The duct-mounting bracket is mounted at the slot to hold the duct in place. These brackets are available separately.
