Fiber Raceway

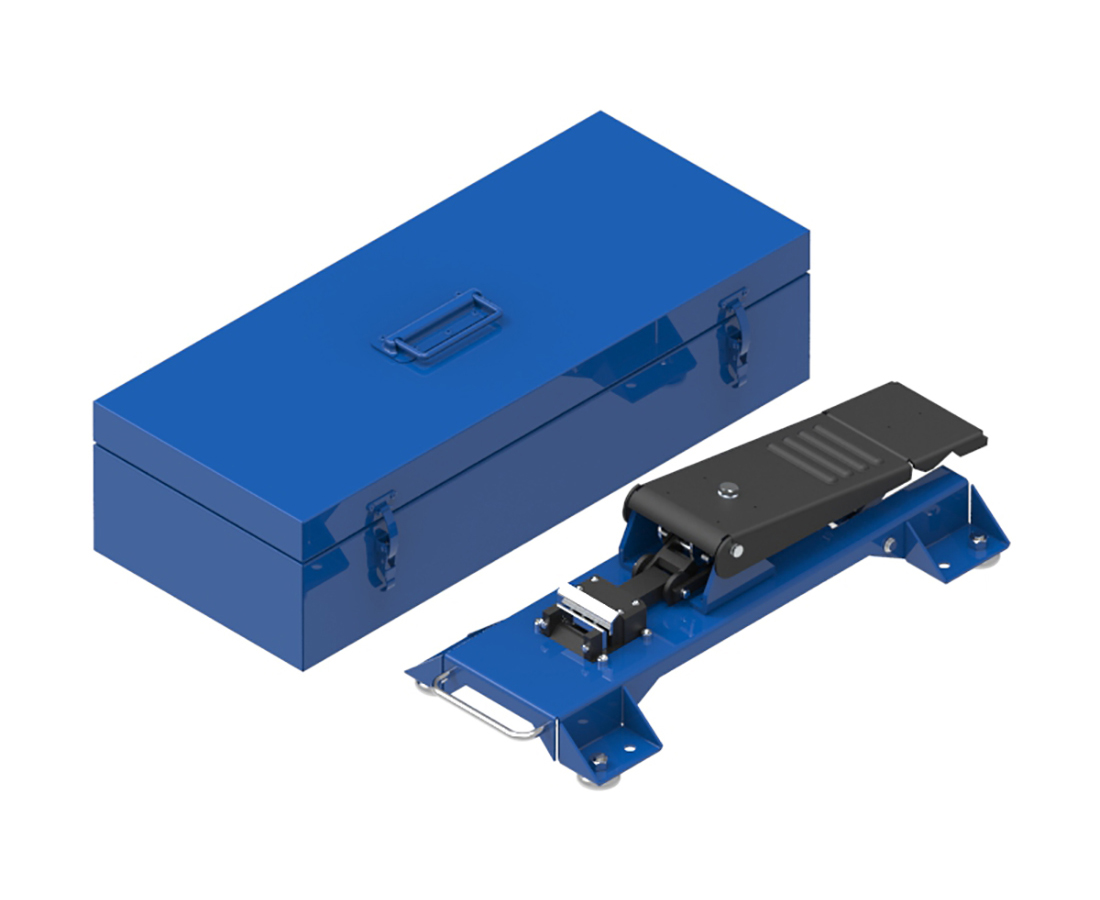

Fiber Raceway Slotting Tool - Foot Operated Tool with Carrying Case

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	30.864 lbs
Overall Height	8.464 in (214.986 mm
Overall Width	12.204 in
Overall Length	24.015 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Steel

Product Notes

Notes	The foot operated duct slotting tool is a means of making duct end slots, easily, accurately and quickly i.e. less than 1 minute to slot one end of a duct. By using a foot operated system a small effort is required to exert the large force necessary to make a slot. Both hands are free to hold the duct. The jaws are made of hardened carbon steel, for a long service life. To operate, place duct side or end, within the tools cutting guides, hold duct down flush with top face of tool, and press foot operated lever, until a slot is made. Release the slotting punch, using the foot operated release pedal. Remove and reposition duct for next slot. The slotting tool cuts a slot in the duct end to suit a standard joiner; available separately. The kit includes one foot operated slotting tool and a metal tool box, for storage and transport, c/w a foam insert.

Notes

The foot operated duct slotting tool is a means of making duct end slots, easily, accurately and quickly i.e. less than 1 minute to slot one end of a duct. By using a foot operated system a small effort is required to exert the large force necessary to make a slot. Both hands are free to hold the duct. The jaws are made of hardened carbon steel, for a long service life. To operate, place duct side or end, within the tools cutting guides, hold duct down flush with top face of tool, and press foot operated lever, until a slot is made. Release the slotting punch, using the foot operated release pedal. Remove and reposition duct for next slot. The slotting tool cuts a slot in the duct end to suit a standard joiner; available separately. The kit includes one foot operated slotting tool and a metal tool box, for storage and transport, c/w a foam insert.
