Fiber Raceway

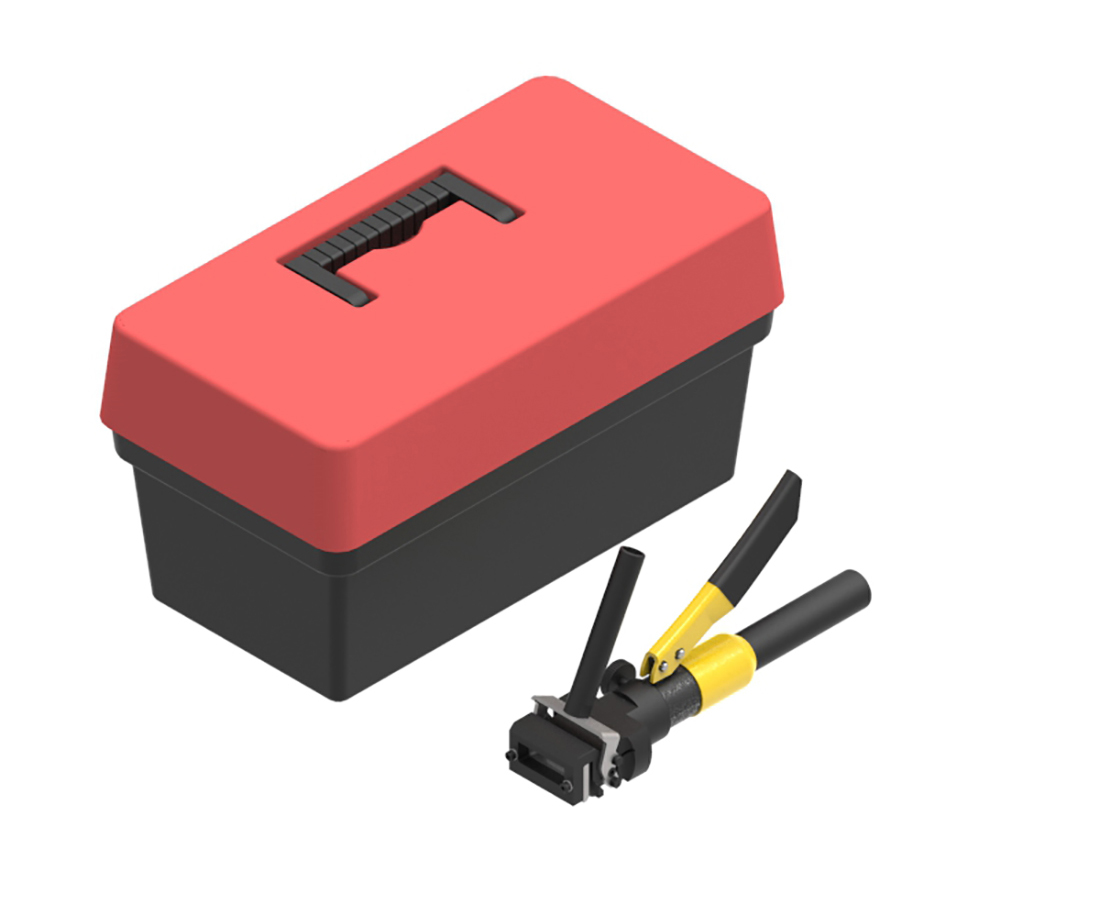

Fiber Raceway Slotting Tool - Hand, Hydraulic Tool with Carrying Case

Availability:

EMEA | Americas
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	5.732 lbs
Overall Height	6.496 in (164.998 mm
Overall Width	2.952 in
Overall Length	12.204 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material
Steel and Plastic

Product Notes

Notes	The hydraulic hand held duct slotting tool is a means of making duct end slots, easily, simply and quickly i.e. less than 1 minute to make a slot. The hydraulic tool exerts a force of 5 tonnes, and the jaws are made of hardened carbon steel, for a long service life. To operate, place tool on duct side or end, tighten side release valve knob, pump tool gently, until a slot is made. Release valve knob by unscrewing. Push jaw back using front return handle. Slots for joiners are made repeatedly, quickly and accurately. The slotting tool cuts a slot in the duct end to suit a standard connector. The kit is also provided with a plastic tool box, for transport.

Notes

The hydraulic hand held duct slotting tool is a means of making duct end slots, easily, simply and quickly i.e. less than 1 minute to make a slot. The hydraulic tool exerts a force of 5 tonnes, and the jaws are made of hardened carbon steel, for a long service life. To operate, place tool on duct side or end, tighten side release valve knob, pump tool gently, until a slot is made. Release valve knob by unscrewing. Push jaw back using front return handle. Slots for joiners are made repeatedly, quickly and accurately. The slotting tool cuts a slot in the duct end to suit a standard connector. The kit is also provided with a plastic tool box, for transport.
