Product Number: ORAF02-02YC

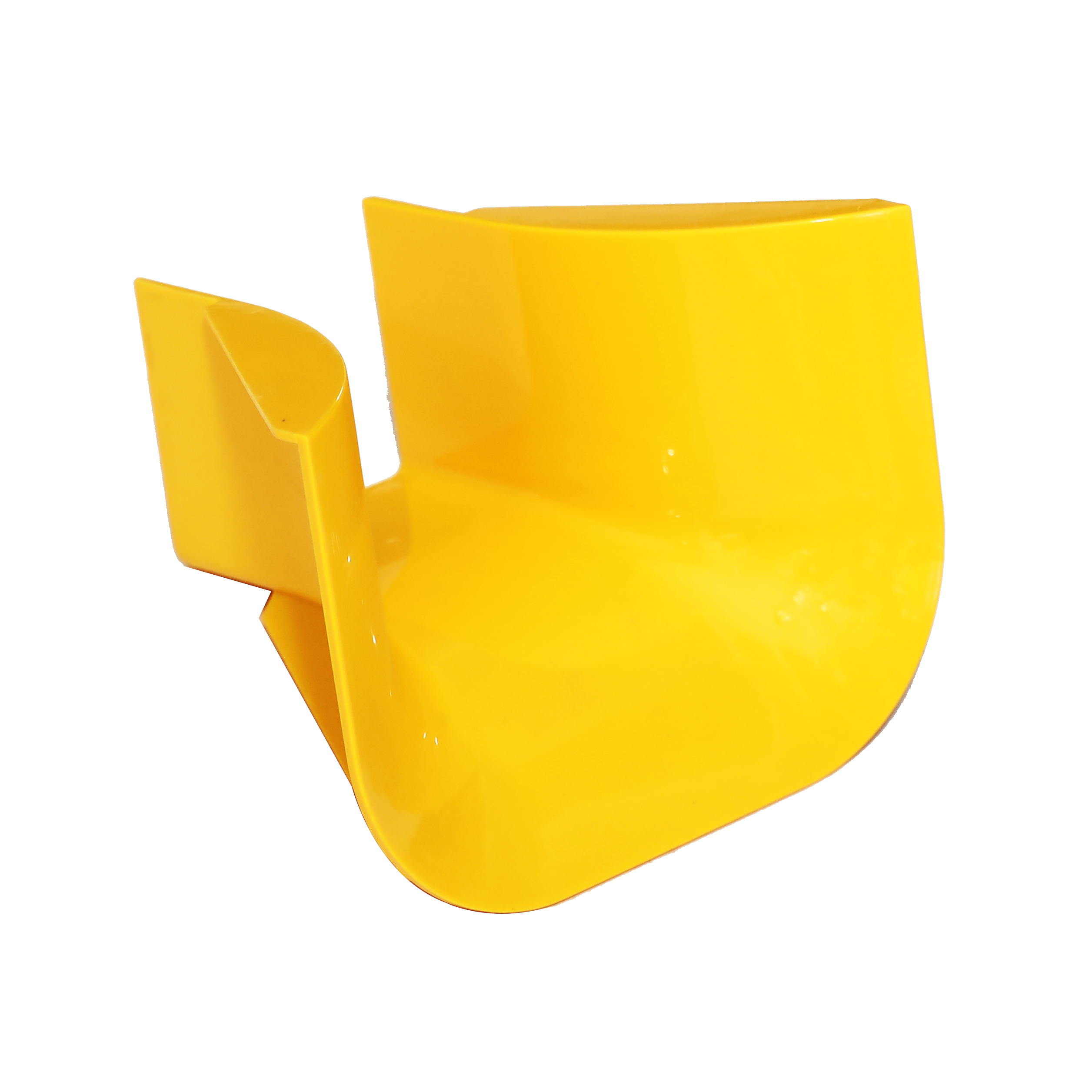

Fiber Raceway Trumpet, 50mm X 50mm, Yellow
Fiber Raceway Trumpet, 50mm X 50mm, Yellow
-
Availability:
Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
Trumpet is used for fiber patch cord drop off purpose and provides the bending radius protection for fiber cable |
Construction
|
Height |
50 mm |
|---|---|
|
Width |
50 mm |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
|
Operating Temperature Range |
-20°C To +70°C |
|---|---|
|
Storage Temperature Range |
-25°C To +70°C |
Product Material
Materials
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-V0 rated |
Product Notes
|
Notes |
Size shown in this TDS are not precise figures and just for onsite installation reference and drawing is not to scale. Humidity (R.H): 5% ~ 90%. |
|---|
History
|
Update and Revision |
Revision Number: 0.14 Revision Date: 07-30-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.14 Revision Date: 07-30-2024 |
|---|
