ORCE04-12YL4UC

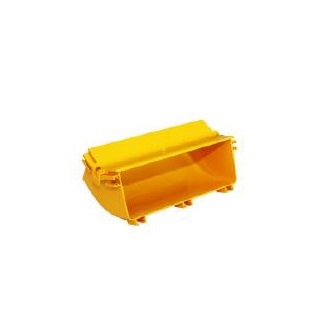

Fiber Raceway 45° Up Elbow with cover, 100mm x 300mm, Yellow

Fiber Raceway 45° Up Elbow with cover, 100mm x 300mm, Yellow

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Environmental Space	Indoor
Suitable Applications	Up/down elbows are used to connect horizontal routes at different height, or to allow the fiber path to be raised or lowered to avoid obstacles and change the routing.

Height	100 mm
Width	300 mm

Description

Operating Temperature Range	-20°C To +70°C
Storage Temperature Range	-25°C To +70°C

Material
Fire retardant plastic, Halogen free, UL94-V0 rated

Notes	Size shown in this TDS are not precise figures and just for onsite installation reference and drawing is not to scale. A 90° up/down elbow can be achieved by 2 x 45° up/down elbows joined together with 1 duct joiner. Humidity (R.H): 5% ~ 90%.

Update and Revision	Revision Number: 0.10 Revision Date: 04-22-2024
