Product Number: ORS02-02YLC

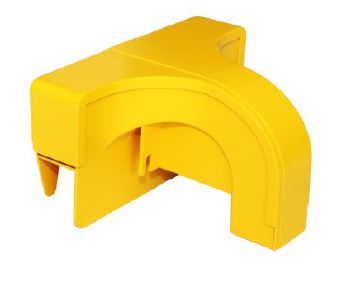

Fiber Raceway Vertical Downspout with cover, 50mm x 50mm, Yellow
Fiber Raceway Vertical Downspout with cover, 50mm x 50mm, Yellow
-
Availability:
Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Environmental Space |
Indoor |
|---|---|
|
Suitable Applications |
Vertical downspout is used for fiber patch cord drop off purpose. Vertical downspout can be mounted along the duct without cutting the duct. It simplifies the design and save the installation time. Down spout can connect to trumpets or flex tubes. |
Construction
|
Height |
50 mm |
|---|---|
|
Width |
50 mm |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
|
Operating Temperature Range |
-20°C To +70°C |
|---|---|
|
Storage Temperature Range |
-25°C To +70°C |
Product Material
Materials
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-V0 rated |
Product Notes
|
Notes |
Size shown in this TDS are not precise figures and just for onsite installation reference and drawing is not to scale. Humidity (R.H): 5% ~ 90% |
|---|
History
|
Update and Revision |
Revision Number: 0.10 Revision Date: 04-22-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.10 Revision Date: 04-22-2024 |
|---|
