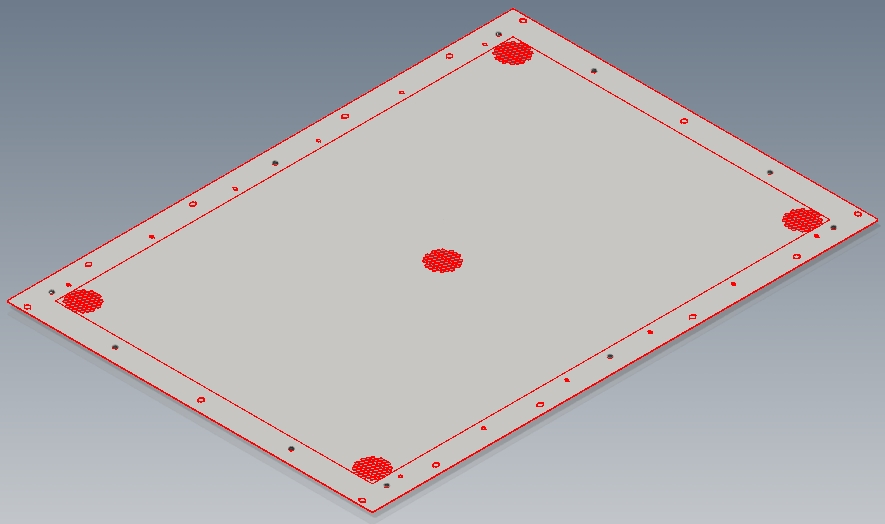

XHM Perforated Top Panel Options

Availability:

Global
Status:

Active

Quote

Specifications
Part Numbers
Resources

Specifications

Expand All

Application

Product Overview	These individual component ordering options are available as an ala carte option for customers that have existing XH Series Belden Cabinets and would like to replace an item, or want to add an additional item. These component selections are not meant to serve as an individual item selection to create a complete cabinet. If you would like to configure a cabinet for a BOM, please go to the cabinet configurator section of the online catalog that is titled "Need a custom configured product?" or do a search in the search bar for the cabinet series you are looking for to see the selection of compatible items available.
Environmental Space	Indoor

Product Overview

These individual component ordering options are available as an ala carte option for customers that have existing XH Series Belden Cabinets and would like to replace an item, or want to add an additional item. These component selections are not meant to serve as an individual item selection to create a complete cabinet. If you would like to configure a cabinet for a BOM, please go to the cabinet configurator section of the online catalog that is titled "Need a custom configured product?" or do a search in the search bar for the cabinet series you are looking for to see the selection of compatible items available.

Environmental Space

Indoor

Construction and Dimensions

Construction	Steel

Electrical Characteristics

Frequency	Top panels have a 78% open area hexagonal perforated pattern

Environmental and Overall Characteristics

Finish	Medium Texture Powder Coat
Material	Steel

Related Part Numbers

Packaging	If ordered with a cabinet, Top Panel will be installed. If ordered separately, product will be packaged and shipped.
Update and Revision	Revision Number: 0.47 Revision Date: 11-09-2022

Information

Packaging	If ordered with a cabinet, Top Panel will be installed. If ordered separately, product will be packaged and shipped.
Update and Revision	Revision Number: 0.47 Revision Date: 11-09-2022

Report An Error

Part Numbers

Cabinet Frame Width	Cabinet Frame Depth	Panel Color	Ordering Part #
24.0 in	30.0 in	Black	HM2430TP301
24.0 in	36.0 in	Black	HM2436TP301
24.0 in	42.0 in	Black	HM2442TP301
24.0 in	48.0 in	Black	HM2448TP301
30.0 in	30.0 in	Black	HM3030TP301
30.0 in	36.0 in	Black	HM3036TP301
30.0 in	42.0 in	Black	HM3042TP301
30.0 in	48.0 in	Black	HM3048TP301
24.0 in	30.0 in	White	HM2430TP302
24.0 in	36.0 in	White	HM2436TP302
24.0 in	42.0 in	White	HM2442TP302
24.0 in	48.0 in	White	HM2448TP302
30.0 in	30.0 in	White	HM3030TP302
30.0 in	36.0 in	White	HM3036TP302
30.0 in	42.0 in	White	HM3042TP302
30.0 in	48.0 in	White	HM3048TP302
