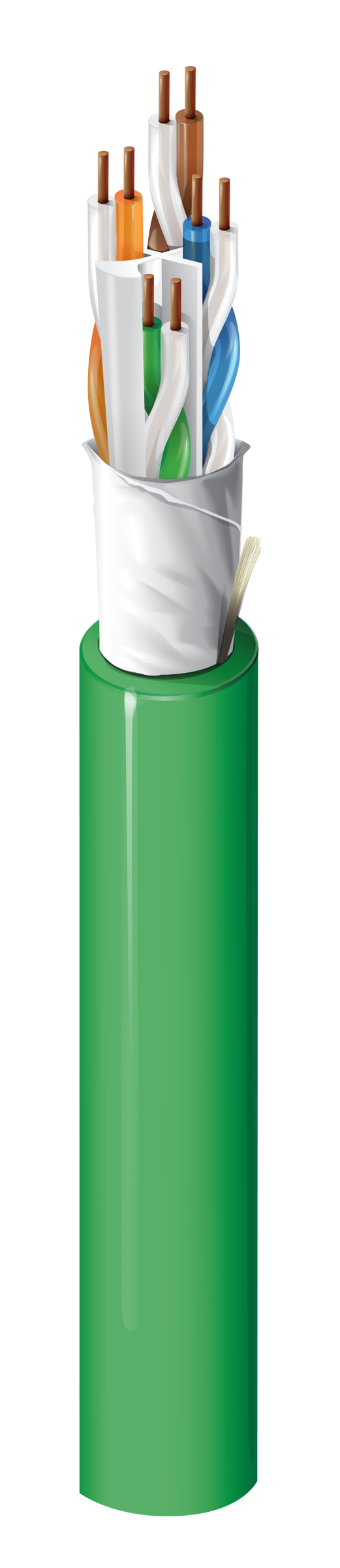

10GXS24

CAT6A 10GX Small Diameter, 4pr, UTP, LSZH Jkt, LSZH

...
Category 6A Enhanced (625 MHz), 4 Pair, U/UTP-Unshielded, Zero Halogen, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented EquiSpline™ & EquiBlock™ Technologies, Ripcord, LSZH Jacket
English Metric
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, 10 Gigabit Ethernet, Wireless, WIFI, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, PoE, PoE Plus

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation
Material
PO - Polyolefin

Bonded-Pair

N/A

Color Chart
Number Color
1 White & Blue
2 White & Orange
3 White & Green
4 White & Brown
Outer Jacket Material
Material Material Trade Name Nominal Diameter Ripcord
LSZH - Low Smoke Zero Halogen (Flame Retardant) Haloarrest® 0.275 in Yes
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max. DCR Unbalance Max DCR Unbalanced Between Pairs [%]
82 Ohm/km 3.0 % 5.0 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
45 pF/100m 17 pF/ft
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
537.6 ns/100m 45 ns/100m 65%
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 75.3 dB 73.2 dB 74.8 dB 20.0 dB 100 ± 15 Ohm 105 ± 10 Ohm 75.0 dB 77.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 66.3 dB 62.5 dB 62.8 dB 23.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 76.2 dB 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 61.8 dB 56.5 dB 56.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 70.1 dB 40.0 dB 16.9 dB
10 MHz 5.9 dB/100m 60.3 dB 54.4 dB 54.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 68.2 dB 40.0 dB 15.0 dB
16 MHz 7.4 dB/100m 57.2 dB 49.8 dB 50.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 64.1 dB 38.0 dB 10.9 dB
20 MHz 8.3 dB/100m 55.8 dB 47.5 dB 48.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 62.2 dB 37.0 dB 9.0 dB
25 MHz 9.3 dB/100m 54.3 dB 45.0 dB 46.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 60.2 dB 36.0 dB 7.0 dB
31.25 MHz 10.4 dB/100m 52.9 dB 42.5 dB 44.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 10 Ohm 75.0 dB 58.3 dB 35.1 dB 5.1 dB
62.5 MHz 14.8 dB/100m 48.4 dB 33.6 dB 38.9 dB 21.5 dB 100 ± 15 Ohm 100 ± 10 Ohm 73.6 dB 52.3 dB 32.0 dB
100 MHz 18.9 dB/100m 45.3 dB 26.4 dB 34.8 dB 20.1 dB 100 ± 15 Ohm 100 ± 10 Ohm 70.5 dB 48.2 dB 30.0 dB
200 MHz 27.0 dB/100m 40.8 dB 13.8 dB 28.8 dB 18.0 dB 100 ± 22 Ohm 100 ± 10 Ohm 66.0 dB 42.2 dB 27.0 dB
250 MHz 30.4 dB/100m 39.3 dB 9.0 dB 26.8 dB 17.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 64.5 dB 40.2 dB 26.0 dB
300 MHz 33.5 dB/100m 38.1 dB 4.6 dB 25.3 dB 16.8 dB 100 ± 32 Ohm 100 ± 10 Ohm 63.3 dB 38.7 dB 25.2 dB
350 MHz 36.3 dB/100m 37.1 dB 0.8 dB 23.9 dB 16.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.3 dB 37.3 dB 24.6 dB
400 MHz 39.0 dB/100m 36.3 dB 22.8 dB 15.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 61.5 dB 36.2 dB 24.0 dB
450 MHz 41.5 dB/100m 35.5 dB 21.7 dB 15.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 60.7 dB 35.1 dB 23.5 dB
500 MHz 43.9 dB/100m 34.8 dB 20.8 dB 15.2 dB 100 ± 32 Ohm 100 ± 10 Ohm 60.0 dB 34.2 dB 23.0 dB
550 MHz 46.2 dB/100m 33.2 dB 20.0 dB 14.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 59.4 dB 33.4 dB
600 MHz 48.4 dB/100m 32.6 dB 19.2 dB 14.7 dB 100 ± 32 Ohm 100 ± 10 Ohm 58.8 dB 32.6 dB
625 MHz 49.5 dB/100m 32.4 dB 18.9 dB 14.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 58.6 dB 32.3 dB
750 MHz 54.7 dB/100m 32.2 dB 17.3 dB 14.0 dB 57.4 dB 30.7 dB
860 MHz 58.9 dB/100m 31.3 dB 16.1 dB 13.6 dB 56.5 dB 29.5 dB
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Installation Temp Range

0°C To +50°C

Non-UL Temp Rating

75°C

Storage Temp Range

-20°C To +75°C

Operating Temp Range

-20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

35 lbs/1000ft

Max. Pull Tension

25 lbs

Min. Bend Radius/Minor Axis

1.25 in
Standards

NEC/(UL) Compliance

N/A

ISO/IEC Compliance

11801 ed 2.2 (2011) Class EA

ANSI Compliance

S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Other Specification

Verified Channel/Category 6A

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

No

EU REACH SVHC Compliance (yyyy-mm-dd)

2019-01-15

EU RoHS Compliance Date (yyyy-mm-dd)

2019-03-25

Suitability

Suitability - Aerial

No

Suitability - Burial

No

Suitability - Hazardous Locations

No

Suitability - Indoor

Yes

Suitability - Non-Halogenated

Yes

Suitability - Oil Resistance

No

Suitability - Outdoor

No

Suitability - Sunlight Resistance

No

Plenum/Non-Plenum

Plenum (Y/N)

No

Plenum Number

10GXS13

Non-Plenum Number

10GXS12

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.56 Revision Date: 07-12-2021
