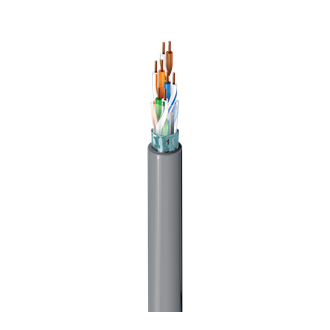

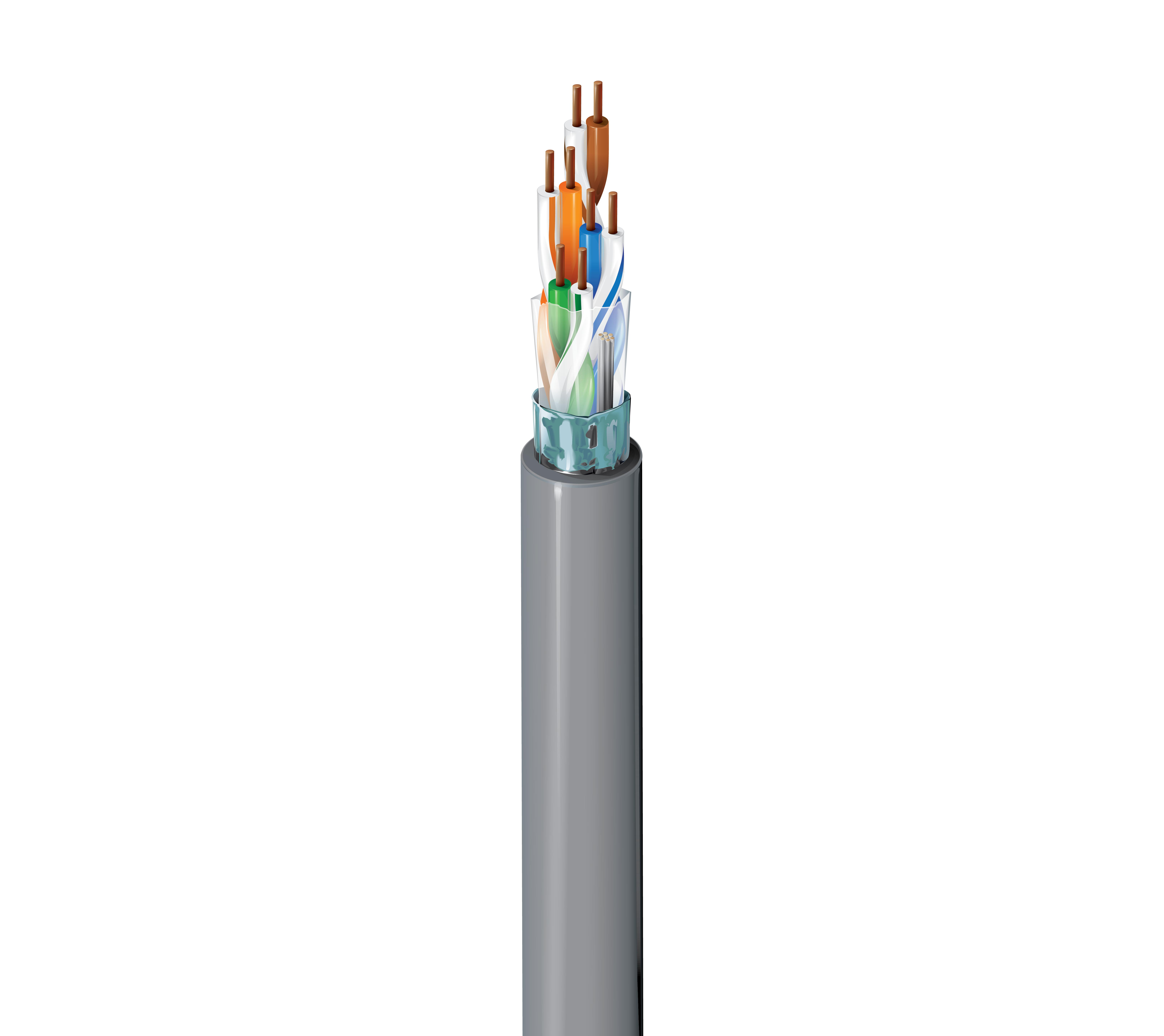

Category 5 Cable, 4 Pair, F/UTP, CMR
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE , Noisy Environments |
|---|
| AWG | Stranding | Material | Number of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 4 |
| Material | Thickness | Color Code |
|---|---|---|
| PO - Polyolefin | 0.01 in | White/Blue Stripe & Blue, White /Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
|
Bonded-Pair |
No |
|---|
| Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Polyester + Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Material | Nom. Diameter | Ripcord |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.26 in | No |
| Max. Conductor DCR | Max. DCR Unbalance | Nom. Mutual Capacitance |
|---|---|---|
| 93.8 Ohm/km | 3% | 15 pF/ft |
| Max. Delay | Max. Delay Skew | Nom. Velocity of Propagation (VP) [%] |
|---|---|---|
| 538 ns/100m | 45 ns/100m | 67% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. SRL (Structural Return Loss) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|
| 1 MHz | 2 dB/100m | 62.2 dB | 62.3 dB | 23 dB | 100 ± 15 Ohm |
| 4 MHz | 4.1 dB/100m | 53.3 dB | 53.3 dB | 23 dB | 100 ± 15 Ohm |
| 8 MHz | 5.8 dB/100m | 48.8 dB | 48.8 dB | 23 dB | 100 ± 15 Ohm |
| 10 MHz | 6.5 dB/100m | 47.3 dB | 47.3 dB | 23 dB | 100 ± 15 Ohm |
| 16 MHz | 8.2 dB/100m | 44.3 dB | 44.3 dB | 23 dB | 100 ± 15 Ohm |
| 20 MHz | 9.3 dB/100m | 42.8 dB | 42.8 dB | 23 dB | 100 ± 15 Ohm |
| 25 MHz | 10.4 dB/100m | 41.3 dB | 41.3 dB | 22 dB | 100 ± 15 Ohm |
| 31.25 MHz | 11.7 dB/100m | 39.9 dB | 39.9 dB | 21.1 dB | 100 ± 15 Ohm |
| 62.5 MHz | 17 dB/100m | 35.4 dB | 35.4 dB | 18 dB | 100 ± 15 Ohm |
| 100 MHz | 22 dB/100m | 32.2 dB | 32.3 dB | 16 dB | 100 ± 15 Ohm |
| UL Voltage Rating |
|---|
| 300 V (CMR) |
| Operating |
|---|
| -20°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1 in | 2.6 in |
|
Max. Pull Tension |
25 lbs |
|---|---|
|
Bulk Cable Weight |
30 lbs/1000ft |
|
Environmental Suitability |
Riser, Indoor |
|---|---|
|
Flammability / Fire Resistance |
UL 1666 Riser, FT4, FT4, IEC 60332-1-2 |
|
NEC / UL Compliance |
Article 800, CMR |
|
CEC / C(UL) Compliance |
CMR |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3 |
|
Data Category |
Category 5 |
|
CPR Euroclass |
Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
1624P |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Shield is bonded to jacket inner wall for electrical stability. RJ-45 Compatible. Jacket sequentially marked at 2 ft. intervals. Third party verified to TIA/EIA-568-B.2, Category 5. |
|---|
|
Update and Revision |
Revision Number: 0.277 Revision Date: 07-02-2021 |
|---|
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 1624R 0061000 | Blue | Reel | 1,000 ft | 612825119623 |
| 1624R 006A1000 | Blue | Reel-in-Box | 1,000 ft | 612825119616 |
| 1624R F2V1000 | Gray | Reel | 1,000 ft | 612825119517 |
| 1624R F2VA1000 | Gray | Reel-in-Box | 1,000 ft | 612825119500 |
| 1624R F2V1640 | Gray | Reel | 1,640 ft | 612825119524 |
| 1624R 0051000 | Green | Reel | 1,000 ft | 612825119609 |
| 1624R 005A1000 | Green | Reel-in-Box | 1,000 ft | 612825119593 |
| 1624R 0031000 | Orange | Reel | 1,000 ft | 612825119562 |
| 1624R 003A1000 | Orange | Reel-in-Box | 1,000 ft | 612825119555 |
| 1624R B021000 | Purple | Reel | 1,000 ft | 612825119494 |
| 1624R B02A1000 | Purple | Reel-in-Box | 1,000 ft | 612825119487 |
| 1624R 0021000 | Red | Reel | 1,000 ft | 612825119548 |
| 1624R 002A1000 | Red | Reel-in-Box | 1,000 ft | 612825119531 |
| 1624R 0041000 | Yellow | Reel | 1,000 ft | 612825119586 |
| 1624R 004A1000 | Yellow | Reel-in-Box | 1,000 ft | 612825119579 |
