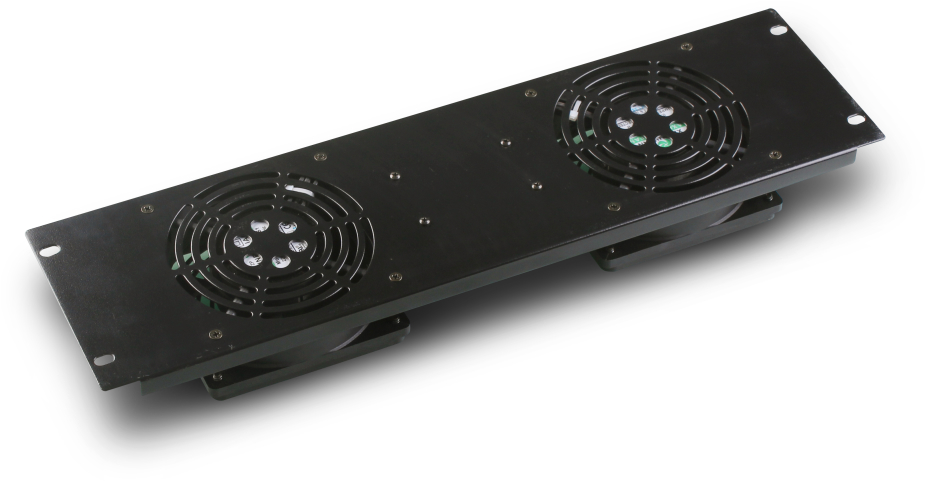

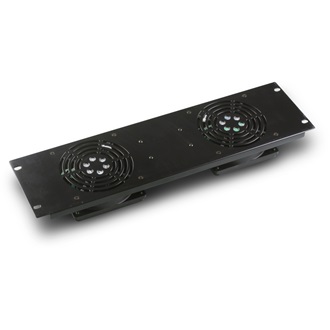

3U FAN UNIT A-SERIES

3U Fan unit with power cord for 19" A-Serie cabinets

...
Fan unit especially made to fit Belden A-series, free standing cabinets. The unit can be installed horizontally inside the enclosure, fixed to the verticals. Units available with 2 or 3 fans and several plug types.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Application

Environmental Space

Indoor
Construction and Dimensions

Rack Units

3U

Mechanical Construction

Cord Length

1.9 m
Environmental and Overall Characteristics

Material

SPCC cold rolled steel

Standards

EU CE Mark

Yes

EU Directive 2011/65/EU (RoHS 2)

Compliant

Related Part Numbers

Packaging

Individually packed in a box.

Update and Revision

Revision Number: 0.31 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Number of Fans Plug Type Color
ADAF3B21 2 BS 1363P Gray
ADAF3B22 2 BS 1363P Black
ADAF3B31 3 BS 1363P Gray
ADAF3B32 3 BS 1363P Black
ADAF3G21 2 16A Schuko Gray
ADAF3G22 2 16A Schuko Black
ADAF3G31 3 16A Schuko Gray
ADAF3N21 2 5-15P Gray
ADAF3N22 2 5-15P Black
ADAF3N31 3 5-15P Gray
ADAF3N32 3 5-15P Black
