50980

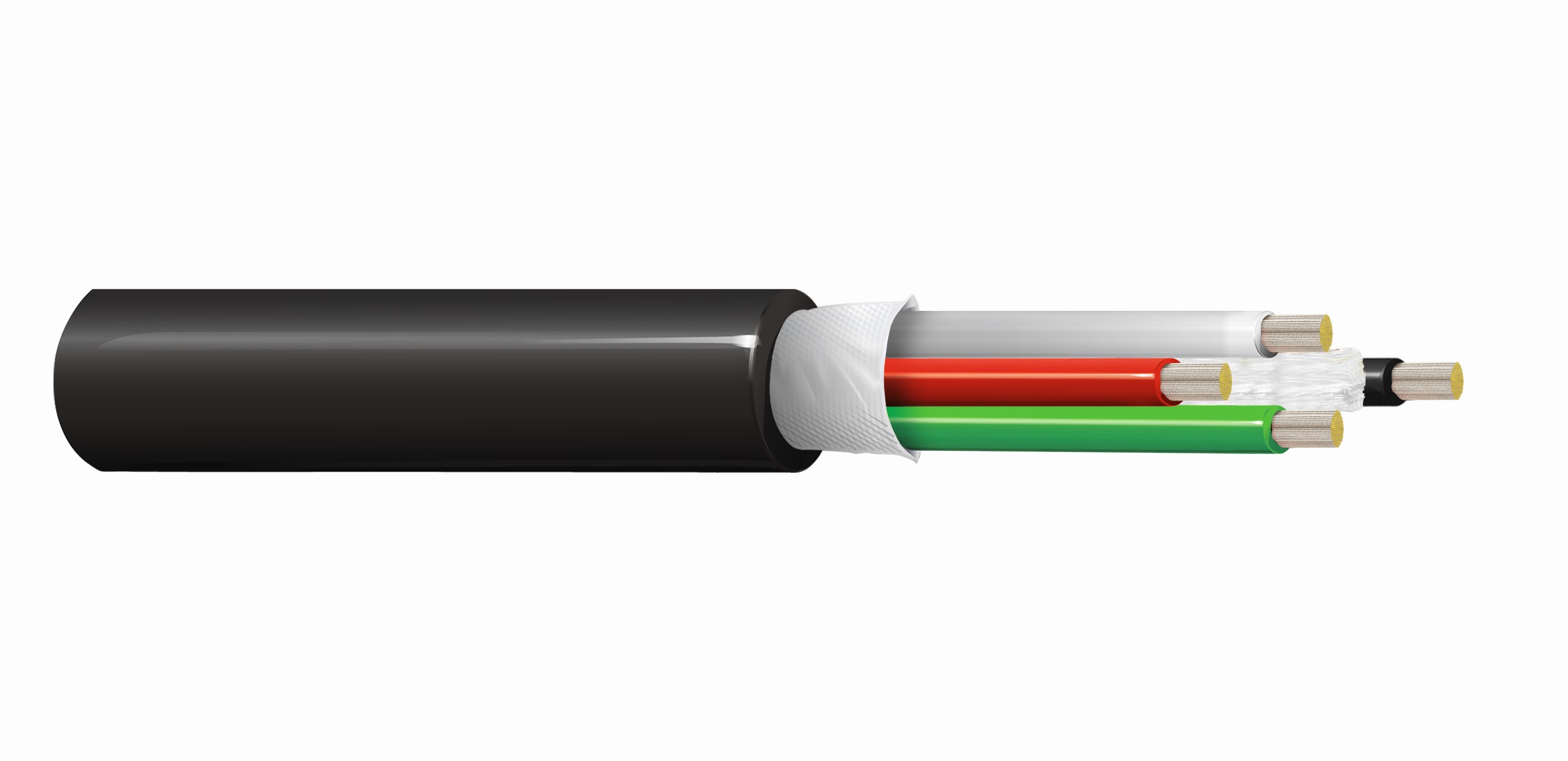

Speaker Cable, 4 Conductor 4 mm², BC, Unshielded

...
Highly Flexible Speaker Cable, 4 core 4 mm² stranded bare copper conductors with TPE insulation, TPE jacket
English Metric
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
4 mm² 127x0.20 mm BC - Bare Copper 4

Conductor Count

4

Insulation
Material
TPE - Thermoplastic Elastomer
Color Chart
Color
Black
White
Red
Green
Outer Jacket Material
Nominal Diameter Separator Material
11.95 mm non-Woven Tape

Material

TPE

Electrical Characteristics
Conductor DCR
Max. Conductor DCR
5.43 Ohm/km
Temperature Range

Operating Temp Range

-25°C to +75°C

Mechanical Characteristics

UV Resistance

Yes

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2011/65/EU (RoHS 2)

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

History

Update and Revision

Revision Number: 0.18 Revision Date: 04-01-2021
