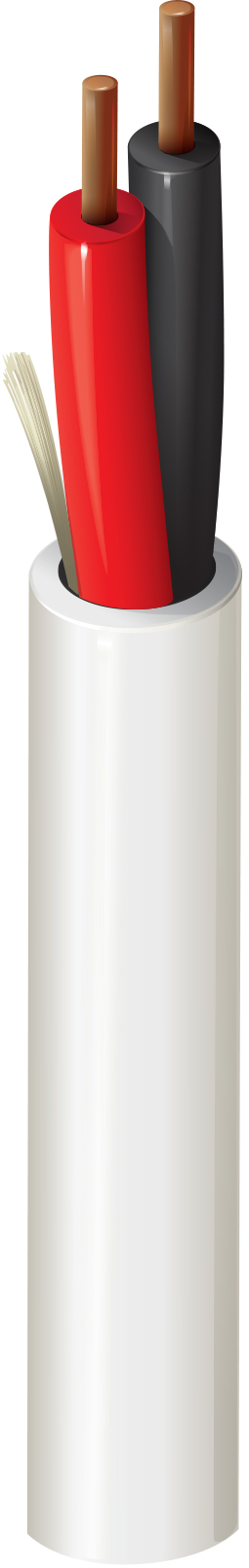

5320UE

Security & Sound, 2 Conductor 18 AWG BC, Riser

Security & Sound Cable, 2 Conductor 18 AWG solid bare copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.

Request Quote

Get Product Alerts

Specifications

Report An Error

Suitable Applications	Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	18 AWG	Solid	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PP - Polypropylene	0.007 in (0.18 mm)	0.055 in (1.4 mm)	Black, Red

Material
No Shield

Material	Nom. Thickness	Nom. Diameter	Ripcord
PVC - Polyvinyl Chloride	0.017 in (0.43 mm)	0.143 in	Yes

Overall Cable Diameter (Nominal)	0.143 in

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
6.4 Ohm/1000ft	23 pF/ft (75 pF/m)	5 Amps per Conductor at 25ºC

UL Voltage Rating
300 V

UL Temperature	Operating
75°C	0°C To +75°C

Stationary Min.	Installation Min.
1.43 in (36.3 mm)	1.43 in

Max. Pull Tension	39.2 lbs (17.8 kg)
Bulk Cable Weight	15 lbs/1000ft

Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL1666 Riser, FT4, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6320UE

Update and Revision	Revision Number: 0.385 Revision Date: 03-27-2024

Part Numbers

Item #	Color	Putup Type	Length	UPC
5320UE 008U1000	Gray	UnReel	1,000 ft	612825421580
5320UE 008Z1000	Gray	ReelTuff Box	1,000 ft	612825160588
