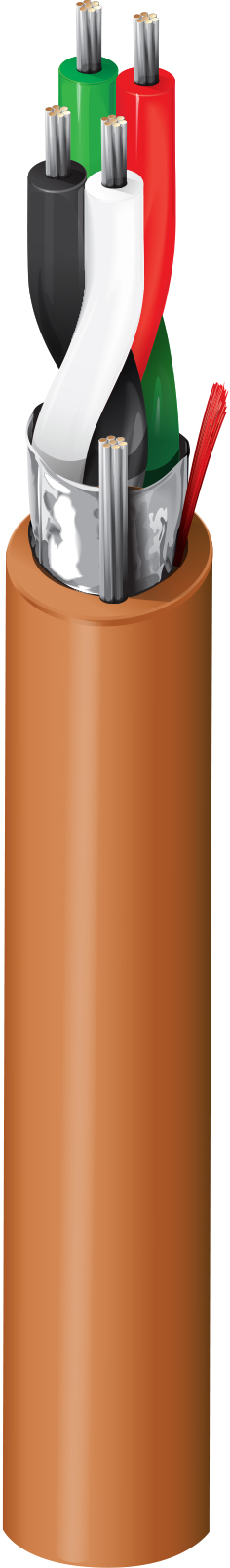

5341PT

Thermostat & Control, #18-2pr, TC, Indiv. Foil, CMR

...
Thermostat & Control Cable, Riser-CMR, 2-18 AWG stranded tinned copper pairs with foam polyolefin insulation, Individually Beldfoil® shielded and PVC jacket with ripcord
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Thermostat, Control, Noisy Environment

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
18 7x26 TC - Tinned Copper 2

Conductor Count

4

Insulation
Material Material Trade Name
PE - Polyethylene (Foam) Datalene®
Color Chart
Number Color
1 Black & White
2 Green & Red
Inner Shield
Material Material Trade Name Coverage [%] Drainwire AWG Drainwire Construction n x D
Bi-Laminate (Alum+Poly) Beldfoil® 100% 18 7x26
Tinned Copper (TC)
Outer Shield
Type
Tape
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.308 in
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR
5.3 Ohm/1000ft 6.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Delay
Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
78 ns/100m 78%
High Frequency
Max./Min. Input Impedance (unFitted)
100 Ohm
Current
Max. Recommended Current [A]
8.1 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

75°C

Operating Temp Range

-20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

54 lbs/1000ft

Max. Pull Tension

134 lbs

Min. Bend Radius/Minor Axis

3.1 in

Standards

NEC/(UL) Compliance

CMR

CEC/C(UL) Compliance

CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability

FT4

UL Flammability

UL1666 Riser

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Plenum Number

6341PT

Footnote

C - CRATE REEL PUT-UP.
