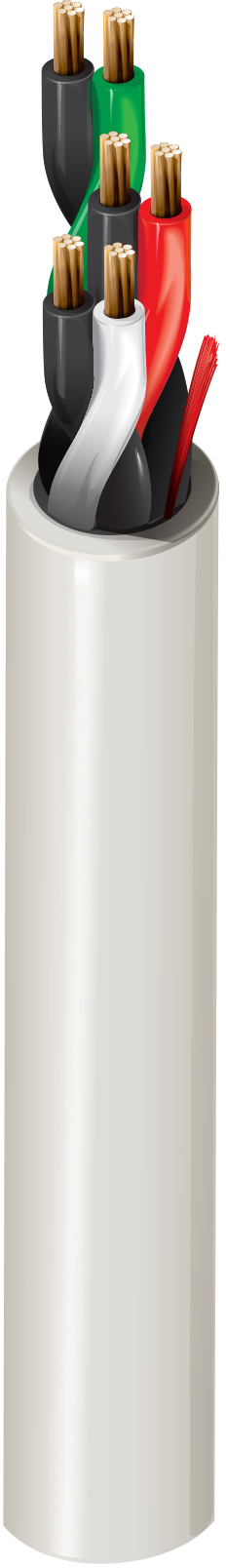

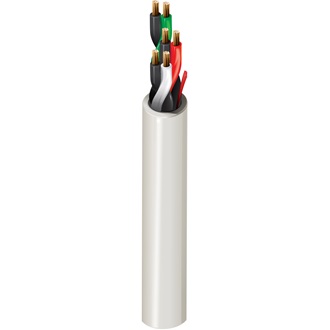

5342UE

Security & Sound, #18-3pr, BC, CMR

...
Security & Sound Cable, Riser-CMR, 3-18 AWG stranded bare copper pairs with polyolefin insulation, PVC jacket with ripcord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 3 18 7x26 BC - Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PP - Polypropylene 0.0085 in (0.22 mm) 0.062 in (1.6 mm) Black & Red, Black & White, Black & Green
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.017 in (0.43 mm) 0.262 in Yes
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
6.93 Ohm/1000ft 29 pF/ft (95 pF/m) 3.5 Amps per Conductor at 20ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
2.62 in (66.5 mm) 2.62 in

Max. Pull Tension

134.4 lbs (60.96 kg)

Bulk Cable Weight

46.1 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL 1666 riser, FT4

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

6342UE

History

Update and Revision

Revision Number: 0.296 Revision Date: 03-27-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
5342UE 0081000 Gray 612825161264
5342UE 008U1000 Gray 612825161257
