Product Number: 5343UE

Security & Sound, #18-4pr, BC, CMR

Security & Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper pairs with polyolefin insulation, PVC jacket with ripcord

  • Availability:
    Global
  • Global inventory:
    Available

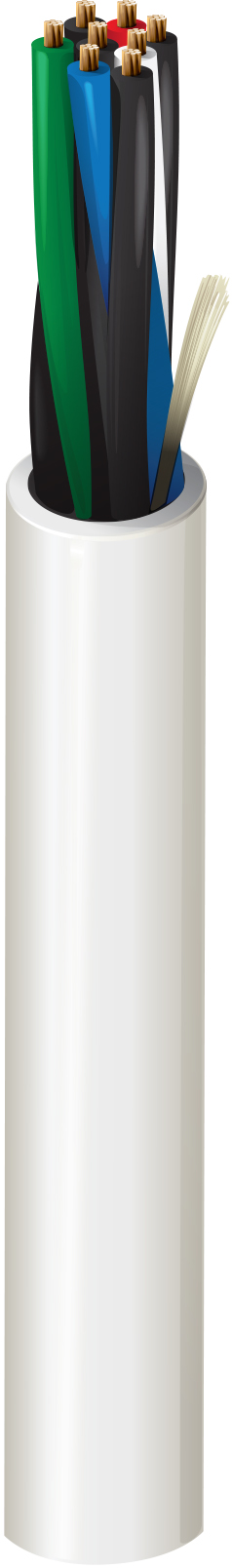

5343UE
  • 5343UE
1 of 1

Specifications

Report An Error

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 4 18 7x26 BC - Bare Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
PP - Polypropylene 0.0085 in (0.22 mm) 0.062 in (1.6 mm) Black & Red, Black & White, Black & Green, Black & Blue

Outer Jacket

Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.018 in (0.46 mm) 0.292 in Yes

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
6.93 Ohm/1000ft 29 pF/ft (95 pF/m) 3.5 Amps per Conductor at 20ºC

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
75°C -20°C To +75°C

Bend Radius

Stationary Min. Installation Min.
2.92 in (74.2 mm) 2.92 in

Max. Pull Tension

179.2 lbs (81.28 kg)

Bulk Cable Weight

55 lbs/1000ft

Flammability / Reaction to Fire

UL 1666 riser, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

6343UE

Update and Revision

Revision Number: 0.301 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.301 Revision Date: 02-03-2025

Part Numbers

Item # Color UPC
5343UE 0081000 Gray 612825161295
