5502G1

Security & Sound, #22-1pr, #22-2c TC, Shielded Pair, CM, Water-Blocked

...

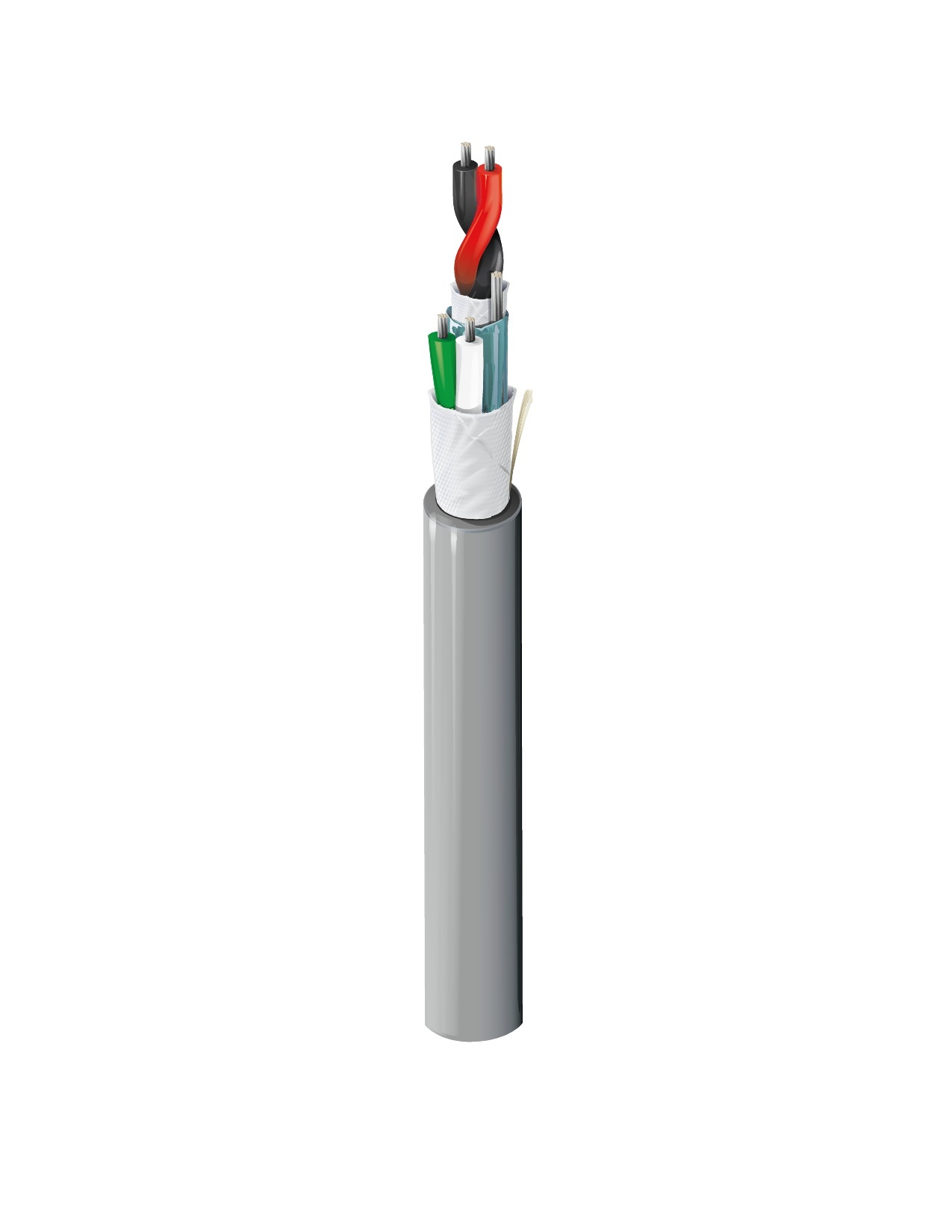

Security & Sound Cable, Rated-CM, 1-22 AWG tinned copper pair with PVC insulation and a Beldfoil® shield, 2-22 AWG tinned copper conductors with PVC insulation, overall water resistant tape and PVC jacket with ripcord
English Metric
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors No. of Pairs
22 7x30 TC - Tinned Copper 1
22 7x30 TC - Tinned Copper 2

Conductor Count

4

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.01 in
PVC - Polyvinyl Chloride 0.01 in
Color Chart
Number Color
Shielded Pair Black and Red
Conductor White
Conductor Green
Inner Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 24 7x32
No Shield

Table Notes

Non-woven

Outer Shield Material
Material
No Shield

Table Notes

Waterblocking tape

Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride 0.234 in 0.025 in Yes
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
164 Ohm/km 16.4 Ohm/1000ft 16.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
44.5 pF/ft 80.1 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Current
Max. Recommended Current [A]
2.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temp Range

-20°C To +105°C

Mechanical Characteristics

Bulk Cable Weight

24.4 lbs/1000ft

Max. Pull Tension

36.4 lbs

Min. Bend Radius/Minor Axis

2.375 in
Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CM

CEC/C(UL) Compliance

CM

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

EU RoHS Compliance Date (yyyy-mm-dd)

2005-10-01

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability

FT1

UL Flammability

UL1685 UL Loading

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.
