5520FE

Security & Sound, 2 Conductor 22 AWG BC, Shielded, Riser

...

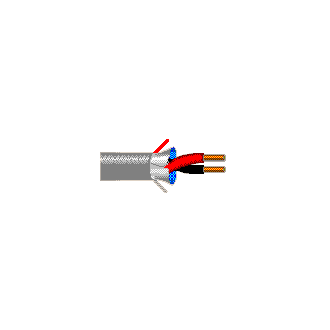

Security & Commercial Audio Cable, 2 Conductor 22 AWG solid bare copper conductors with polyolefin insulation, Beldfoil® shield, Riser, PVC jacket with ripcord.
English Metric
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
22 Solid BC - Bare Copper 2

Conductor Count

2

Insulation
Material Nominal Wall Thickness
PP - Polypropylene 0.007 in
Color Chart
Number Color
1 Black
2 Red
Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 24 Solid
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride 0.118 in 0.017 in Yes
Construction and Dimensions
Cabling
Twists
8 twist/ft
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
15.7 Ohm/1000ft 17.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
40 pF/ft 72 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

75°C

Operating Temp Range

-20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

9 lbs/1000ft

Max. Pull Tension

23.4 lbs

Min. Bend Radius/Minor Axis

1.25 in
Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CMR

CEC/C(UL) Compliance

CMG

Applicable Environmental and Other Programs

Environmental Space

Indoor - Riser

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU RoHS Compliance Date (yyyy-mm-dd)

2005-04-01

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability

FT4

UL Flammability

UL1666 Vertical Shaft

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Plenum Number

6520FE

History

Update and Revision

Revision Number: 0.360 Revision Date: 07-12-2021

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
5520FE 0081000 Gray Reel 1,000 ft 612825164005
5520FE 008C1000 Gray Coil 1,000 ft 612825164012
5520FE 008U1000 Gray UnReel 1,000 ft 612825426103
5520FE 008Z1000 Gray ReelTuff Box 1,000 ft 612825164074
Resources
All Resources
Resource Center
Compliance Documentation
Date: 2005-04-01
