5521FE

Security & Sound, 3 Conductor 22 AWG BC, Shielded, Riser

...

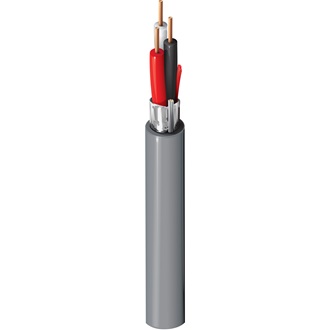

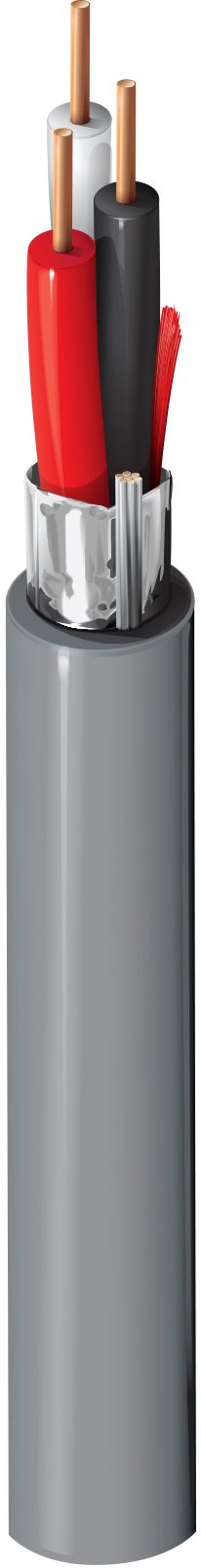

Security & Commercial Audio Cable, 3 Conductor 22 AWG solid bare copper conductors with polyolefin insulation, Beldfoil® shield, Riser, PVC jacket with ripcord.
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
22 Solid BC - Bare Copper 3

Conductor Count

3

Insulation
Material Nominal Wall Thickness
PP - Polypropylene 0.007 in
Color Chart
Number Color
1 Black
2 Red
3 White
Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 22 Solid
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride 0.119 in 0.015 in Yes
Construction and Dimensions
Cabling
Twists
6 twist/ft
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
15.7 Ohm/1000ft 11.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft 55.8 pF/ft
Inductance
Nominal Inductance
0.167 µH/ft
Current
Max. Recommended Current [A]
2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

75°C

Operating Temp Range

-20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

10.8 lbs/1000ft

Max. Pull Tension

31.2 lbs

Min Bend Radius/Minor Axis

1.25 in

Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CMR

CEC/C(UL) Compliance

CMG

Applicable Environmental and Other Programs

Environmental Space

Indoor - Riser

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU RoHS Compliance Date (yyyy-mm-dd)

2005-04-01

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability

FT4

UL Flammability

UL1666 Vertical Shaft

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Plenum Number

6521FE

History

Update and Revision

Revision Number: 0.293 Revision Date: 03-16-2021

Part Numbers
Item # Color Putup Type Length UPC
5521FE 0081000 Gray Reel 1,000 ft 612825426110
5521FE 008Z1000 Gray ReelTuff Box 1,000 ft 612825164159
