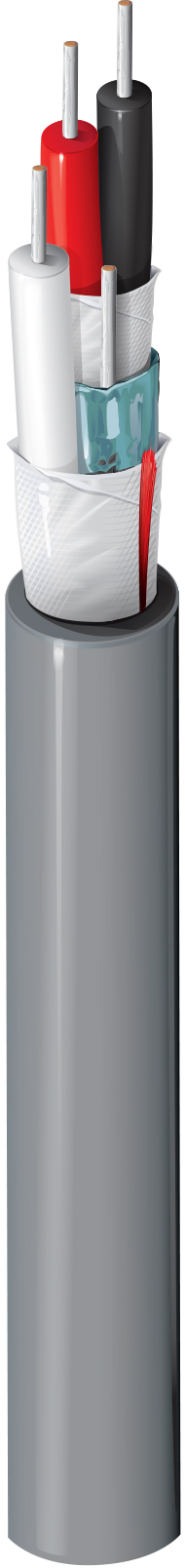

5521G1

Security & Sound, #22-1pr, #22-2c TC, Shielded Pair, CM, Water-Blocked

...
Security & Sound Cable, Rated-CM, 1-22 AWG solid tinned copper pair with PVC insulation and Beldfoil® shield, 1-22 AWG solid tinned copper pairs with PVC insulation, Inner and overall waterblocking tapes, PVC jacket with ripcord

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material No. of Conductors No. of Pairs
Shielded Pair(s) 22 Solid TC - Tinned Copper 1
Conductor(s) 22 Solid TC - Tinned Copper 1

Conductor Count

3

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.01 in
PVC - Polyvinyl Chloride 0.01 in
Color Chart
Number Color
Shielded Pair Black & Red
Conductor White
Inner Shield
Type Layer Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Shielded Pair Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 22
Conductor No Shield
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
PVC - Polyvinyl Chloride 0.212 in 0.025 in Waterblocking Tape
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
16.4 Ohm/1000ft 16.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
48.5 pF/ft 87.3 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Current
Max. Recommended Current [A]
2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temperature Range

-20°C To +105°C

Mechanical Characteristics

Bulk Cable Weight

20 lbs/1000ft

Max. Pull Tension

23.4 lbs

Min. Bend Radius/Minor Axis

3 in
Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CM

CEC/C(UL) Compliance

CM

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1581 Vertical Tray

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.305 Revision Date: 05-31-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
5521G1 0101000 Black 612825164104
5521G1 008500 Gray 612825164098
