5522UG

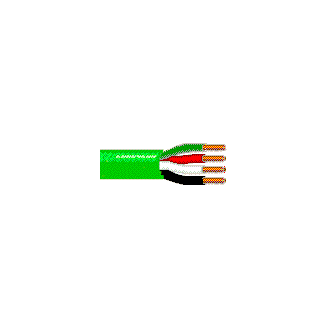

Security & Sound, #22-4c, BC, CM

...
Security & Sound Cable, Rated-CM, 4-22 AWG solid bare copper conductors with polyolefin insulation, PVC jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Nurse call, security, alarm

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Conductors
22 Solid BC - Bare Copper 0.026 in 4

Conductor Count

4

Insulation
Material Nominal Diameter
PP - Polypropylene 0.038 in
Color Chart
Number Color
1 Black
2 Red
3 White
4 Green
Outer Jacket Material
Material Nominal Diameter Ripcord
PVC - Polyvinyl Chloride 0.122 in Yes
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
15.7 Ohm/1000ft
Current
Max. Recommended Current [A]
2.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temp Range

-25°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

12 lbs/1000ft

Max. Pull Tension

27 lbs

Min. Bend Radius/Minor Axis

1.2 in

Standards

NEC/(UL) Compliance

CM

CEC/C(UL) Compliance

CM

Applicable Environmental and Other Programs

Environmental Space

Indoor Rated (Not Riser or Plenum)

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU RoHS Compliance Date (yyyy-mm-dd)

2004-01-01

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Aerial

Yes - Black only, when supported by messenger wire

Suitability - Burial

No

Suitability - Hazardous Locations

No

Suitability - Indoor

Yes

Suitability - Outdoor

Yes - Black only

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Ripcord under jacket

History

Update and Revision

Revision Number: 0.361 Revision Date: 07-12-2021

Part Numbers
Item # Color Putup Type Length UPC
5522UG 009C500 White Coil 500 ft 612825164753
