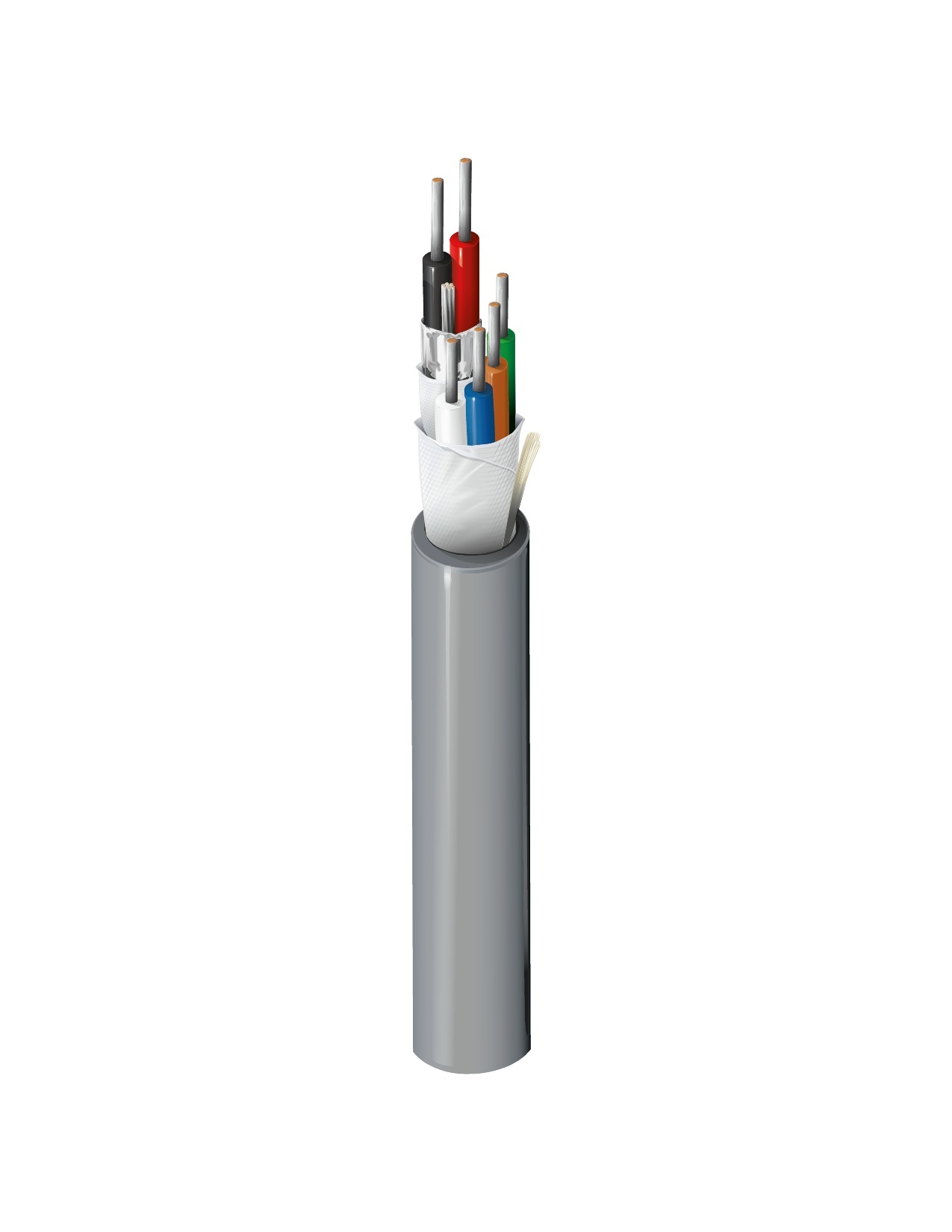

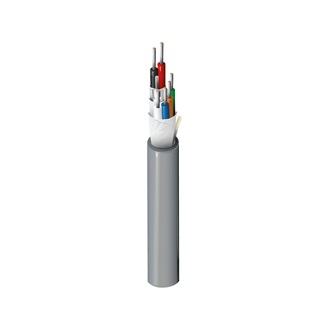

Product Number: 5524G1
Security & Sound, #22-1pr, #22-4c TC, Shielded Pair, CM, Water-Blocked
Security & Sound Cable, Rated-CM, 1-22 AWG solid tinned copper pair with PVC insulation and Beldfoil® shield, 4-22 AWG solid tinned copper conductors with PVC insulation, overall waterblocking tape, PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 22 AWG | Solid | TC - Tinned Copper |
| Conductor(s) | 4 | 22 AWG | Solid | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PVC - Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.046 in (1.2 mm) | Black & Red (shielded pair) |
| Conductor(s) | PVC - Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.046 in (1.2 mm) | Brown, Green, Blue, White |
Inner Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| No Shield |
|
Table Notes |
Waterblocking tape |
|---|
Outer Jacket
| Separator | Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Waterblocking Tape | PVC - Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.244 in | Yes |
|
Overall Cable Diameter (Nominal) |
0.244 in |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|---|
| Pair(s) | 20 Ohm/1000ft | 18.3 Ohm/1000ft (60.0 Ohm/km) | 48.8 pF/ft (160 pF/m) | 87.8 pF/ft (288 pF/m) | 3.5 Amps per Conductor at 25ºC |
| Conductor(s) | 20 Ohm/1000ft (66 Ohm/km) | 3.5 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -40°C To +105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.44 in (62.0 mm) | 2.44 in |
|
Max. Pull Tension |
54 lbs (24 kg) |
|---|---|
|
Bulk Cable Weight |
29 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 UL Loading, FT4 |
|
NEC / UL Compliance |
Article 800, CM |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.310 Revision Date: 05-31-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.310 Revision Date: 05-31-2024 |
|---|
Part Numbers
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 5524G1 0101000 | Black | 612825164197 | C |
| 5524G1 0081000 | Gray | 612825164180 | C |
