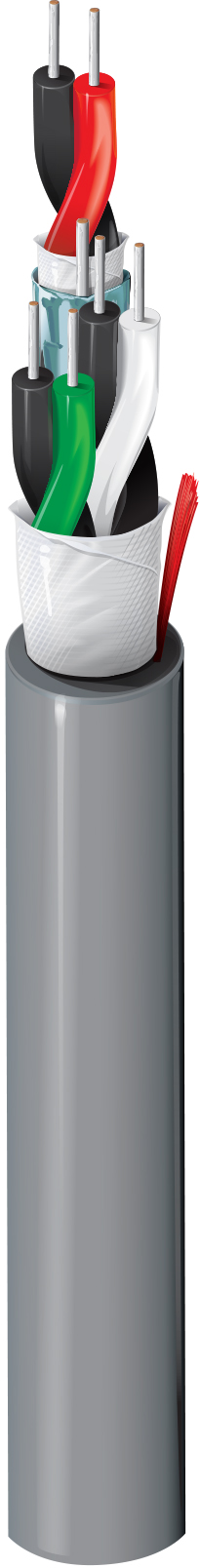

Product Number: 5584G1
Security & Sound, #22-1pr, #22-2pr TC, Shielded Pair, CM, Water-Blocked
Security & Sound Cable, Rated-CM, 1-22 AWG solid tinned copper pair with PVC insulation and Beldfoil® shield, 2-22 AWG solid tinned copper pairs with PVC insulation, Inner and overall waterblocking tape, PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 22 AWG | Solid | TC - Tinned Copper |
| Pair(s) | 2 | 22 AWG | Solid | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PVC - Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.046 in (1.2 mm) | Black & Red |
| Pair(s) | PVC - Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.046 in (1.2 mm) | Black & White, Black & Green |
Inner Shield
| Element | Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|---|
| Blk/Red Pair | Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (Solid) TC |
|
Table Notes |
Waterblocking tape |
|---|
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Separator | Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|---|
| Waterblocking Tape | PVC - Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.283 in | Yes |
|
Overall Cable Diameter (Nominal) |
0.283 in |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Pair(s) | 20.6 Ohm/1000ft | 33 pF/ft (110 pF/m) | 58.6 pF/ft (192 pF/m) | 3.2 Amps per Conductor at 25ºC |
| Pair(s) | 20.6 Ohm/1000ft (67.6 Ohm/km) | 18 pF/ft (59 pF/m) | 3.2 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -20°C To +105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.83 in (71.9 mm) | 2.83 in |
|
Max. Pull Tension |
59 lbs (27 kg) |
|---|---|
|
Bulk Cable Weight |
31.7 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 UL Loading, IEEE 1202 FT4 |
|
NEC / UL Compliance |
Article 800, CM |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
|
Update and Revision |
Revision Number: 0.305 Revision Date: 05-31-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.305 Revision Date: 05-31-2024 |
|---|
Part Numbers
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 5584G1 0101000 | Black | 612825164708 | |
| 5584G1 0081000 | Gray | 612825164685 | C |
