601PTZ

PTZ, RG-59 #20, #22-1pr, #18-2c, Shielded, CMP, Siamese

...

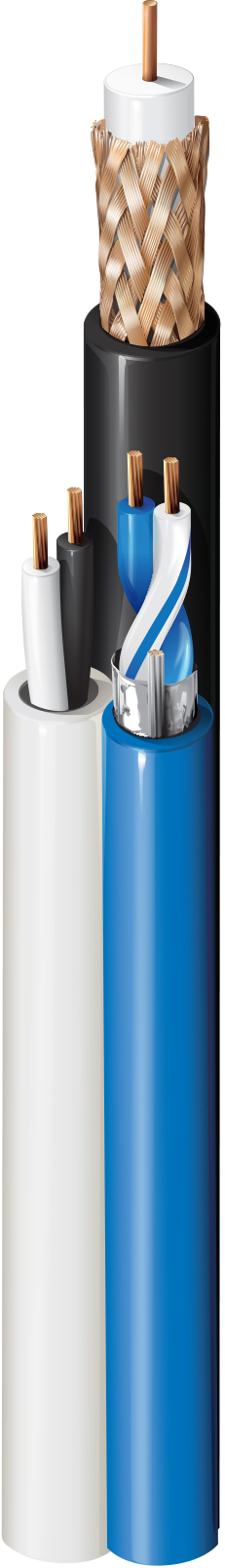

PTZ (CCTV + Control + Power) Cable, Plenum-CMP, 1-RG59 20 AWG solid bare copper with foam PFA, 95% bare copper braid, 1-22 AWG stranded bare copper pair with FEP insulation and Beldfoil® shield, 2-18 AWG stranded bare copper conductors with Flamarrest® insulation, Siamese with Flamarrest® jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material Nominal Diameter No. of Conductors No. of Coax
Coax(es) 20 Solid BC - Bare Copper 0.032 in 1
Pair1 22 7x30 BC - Bare Copper 0.03 in 2
Pair2 18 7x26 BC - Bare Copper 0.047 in 2

Conductor Count

5

Insulation
Element Material Material Trade Name Nominal Diameter Nominal Wall Thickness
Coax(es) FEP - Fluorinated Ethylene Propylene (Foam) 0.133 in
Pair1 FEP - Fluorinated Ethylene Propylene 0.042 in
Pair2 PVC - Polyvinyl Chloride Flamarrest® 0.009 in
Color Chart
Number Color
Coax Core White
Pair1 Blue & White/Blue
Pair2 Black & Red
Inner Shield
Element Type Material Material Trade Name Coverage [%]
Coax(es) Braid Bare Copper (BC) 95%
Pair1 Tape Bi-Laminate (Alum+Poly) Beldfoil® 100%
Pair2 No Shield
Inner Jacket
Material Material Trade Name Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride Flamarrest® 0.193 in 0.016 in
PVC - Polyvinyl Chloride Flamarrest® 0.116 in 0.014 in
PVC - Polyvinyl Chloride Flamarrest® 0.158 in 0.015 in
Outer Shield
Drainwire Construction n x D
7x30
Outer Jacket
Material Nominal Diameter
Banana Peel (No Overall Jacket) 0.351 in
0.116 in
0.158 in
No Jacket 0.351 in
Electrical Characteristics
Conductor DCR
Element Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR
Coax(es) 10 Ohm/1000ft 10 Ohm/1000ft 2.5 Ohm/1000ft
Pair1 15 Ohm/1000ft 15 Ohm/1000ft 12 Ohm/1000ft
Pair2 6.5 Ohm/1000ft 6.5 Ohm/1000ft
Capacitance
Element Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
Coax(es) 16.1 pF/ft
Pair1 35 pF/ft 67 pF/ft
Pair2
Impedance
Element Nominal Characteristic Impedance
Coax(es) 75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz .29 dB/100ft
5 MHz 0.7 dB/100ft
10 MHz 1.1 dB/100ft
50 MHz 1.8 dB/100ft
100 MHz 2.7 dB/100ft
200 MHz 3.9 dB/100ft
400 MHz 5.9 dB/100ft
700 MHz 8.5 dB/100ft
900 MHz 10 dB/100ft
1000 MHz 10.7 dB/100ft
Delay
Element Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
Coax(es) 84 ns/100m 1.21 ns/ft 84%
Current
Element Max. Recommended Current [A]
Coax(es)
Pair1 2.4 Amps per Conductor at 25ºC
Pair2 5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Installation Temperature Range

0°C To +75°C

UL Temp Rating

75°C

Operating Temperature Range

-10°C To +75°C

Separation Temp Range

0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

56 lbs/1000ft

Max. Pull Tension

130 lbs
Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CMP

RG Type

59

Other Specification

Video coax: RG 59/U
Applicable Environmental and Other Programs

Environmental Space

Indoor - Plenum

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

Yes

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

NFPA 262

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Related Part Numbers

Non-Plenum Number

501PTZ

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Product Notes

Notes

RG59 CCTV + 1 STP 22 AWG Control Grade + 2C 18 AWG CMP. Individually jacketed and color coded components, cabled around and each fused to a central binding spline. Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.

History

Update and Revision

Revision Number: 0.355 Revision Date: 05-31-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
601PTZ 0001000 Black, Blue, White 612825171850
601PTZ 000500 Black, Blue, White 612825171867
