6342FE

Security & Sound, #18-3pr, BC, Shielded, CMP

...

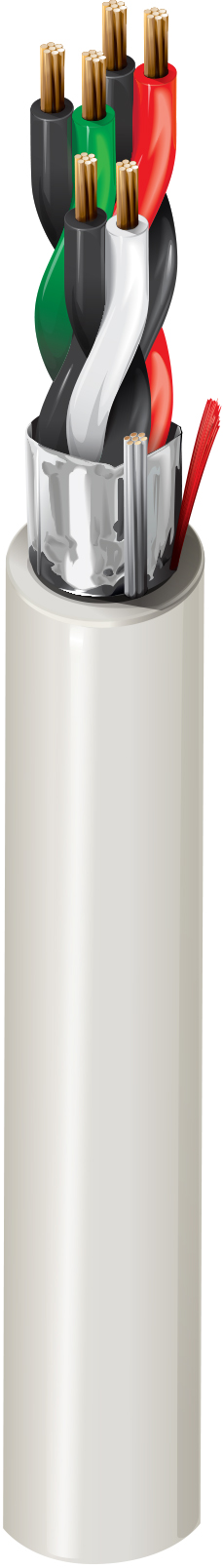

Security & Sound Cable, Plenum-CMP, 3-18 AWG stranded bare copper pairs with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
18 7x26 BC - Bare Copper 3

Conductor Count

6

Insulation
Material Material Trade Name Nominal Wall Thickness
PVC - Polyvinyl Chloride Flamarrest® 0.009 in
Color Chart
Number Color
1 Black & Red
2 Black & White
3 Black & Green
Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 24 7x32
Outer Jacket Material
Material Material Trade Name Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride Flamarrest® 0.282 in 0.015 in Yes
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
6.55 Ohm/1000ft 13.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
40 pF/ft 72 pF/ft
Current
Max. Recommended Current [A]
3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

75°C

Operating Temp Range

0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

52.3 lbs/1000ft

Max. Pull Tension

148.4 lbs

Min Bend Radius/Minor Axis

2.9 in

Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU RoHS Compliance Date (yyyy-mm-dd)

2005-04-01

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability

FT6

UL Flammability

NFPA 262 Plenum Flame Test (UL910)

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Non-Plenum Number

5342FE

Footnote

C - CRATE REEL PUT-UP.

History

Update and Revision

Revision Number: 0.238 Revision Date: 03-16-2021

Part Numbers
Item # Color UPC
6342FE 8771000 Natural 612825176343
