6545UE

Security & Sound, #22-6pr, BC, CMP

...

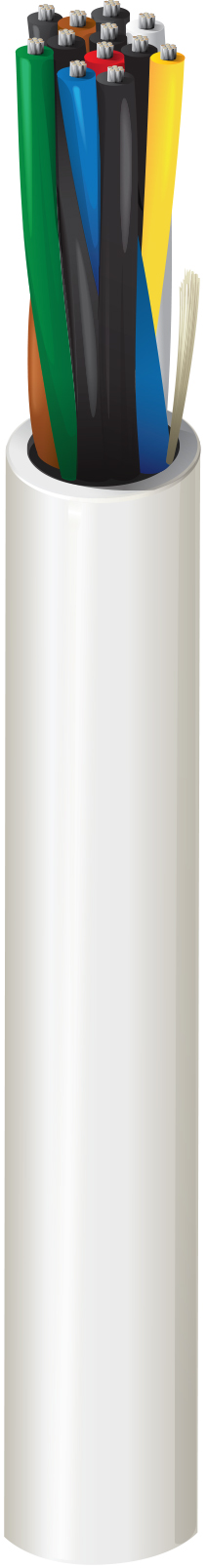

Security & Sound Cable, Plenum-CMP 6-22 AWG stranded bare copper pairs with Flamarrest® insulation, Flamarrest® jacket with ripcord
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
22 7x30 BC - Bare Copper 6

Conductor Count

12

Insulation
Material Material Trade Name Nominal Wall Thickness
PVC - Polyvinyl Chloride Flamarrest® 0.009 in
Color Chart
Color
Black & Red
Black & White
Black & Green
Black & Blue
Black & Yellow
Black & Brown
Outer Shield
Material
No Shield
Outer Jacket
Material Material Trade Name Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride Flamarrest® 0.264 in 0.015 in Yes
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
16.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
25 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temperature Range

0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

43 lbs/1000ft

Max. Pull Tension

109.2 lbs

Min. Bend Radius/Minor Axis

2.5 in

Standards

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

NFPA 262 Plenum Flame Test (UL910)

CSA Flammability

FT6

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Related Part Numbers

Non-Plenum Number

5545UE

Footnote

C - CRATE REEL PUT-UP.

History

Update and Revision

Revision Number: 0.292 Revision Date: 03-27-2024

Part Numbers
Item # Color UPC
6545UE 8771000 Natural 612825178453
