6547UE

Security & Sound, #22-9pr, BC, CMP

...

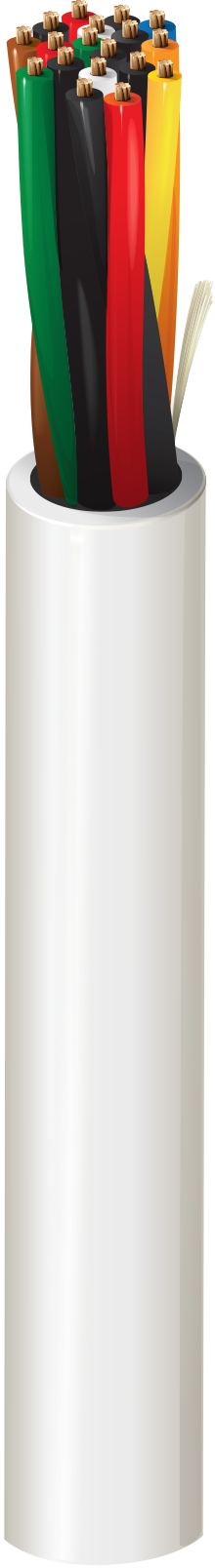

Security & Sound Cable, Plenum-CMP 9-22 AWG stranded bare copper pairs with Flamarrest® insulation, Flamarrest® jacket with ripcord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
22 7x30 BC - Bare Copper 9

Conductor Count

18

Insulation
Material Material Trade Name Nominal Wall Thickness
PVC - Polyvinyl Chloride Flamarrest® 0.009 in
Color Chart
Color
Black & Red
Black & White
Black & Green
Black & Blue
Black & Yellow
Black & Brown
Black & Orange
Red & White
Red & Green
Outer Shield
Material
No Shield
Outer Jacket
Material Material Trade Name Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride Flamarrest® 0.318 in 0.018 in Yes
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
16.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
25 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
1.4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temperature Range

0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

64 lbs/1000ft

Max. Pull Tension

163.8 lbs

Min. Bend Radius/Minor Axis

3.2 in
Standards

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

Applicable Environmental and Other Programs

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

NFPA 262 Plenum Flame Test (UL910)

CSA Flammability

FT6

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Related Part Numbers

Non-Plenum Number

5547UE

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.286 Revision Date: 03-27-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
6547UE 8771000 Natural 612825178484
