6660FT

Thermostat & Control, #24-2c, TC, O/A Foil, CMP

...

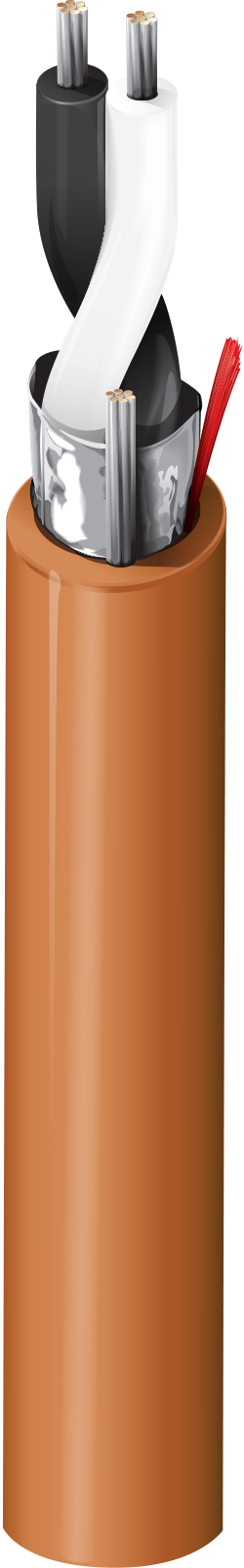

Thermostat & Control Cable, Plenum-CMP, 1-24 AWG solid tinned copper pair with foam FEP insulation, Beldfoil® shield, Flamarrest® jacket
English Metric
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Thermostat, Control, Noisy Environment

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 Solid TC - Tinned Copper 1

Total Number of Pairs

1

Insulation
Material
FEP - Fluorinated Ethylene Propylene (Foam)
Color Chart
Number Color
1 Black & White
Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 24 Solid
Outer Jacket Material
Material Trade Name Nominal Diameter
Flamarrest® 0.128 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
24.8 Ohm/1000ft 15.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Impedance
Nominal Characteristic Impedance Nominal Characteristic Tolerance
100 Ohm +/- 20 Ohm
Delay
Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
78 ns/100m 78%
High Freq
Max./Min. Input Impedance (unFitted)
100 ± 22 Ohm
Current
Max. Recommended Current [A]
3.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

75°C

Operating Temp Range

-20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

9.2 lbs/1000ft

Max. Pull Tension

15 lbs

Min. Bend Radius/Minor Axis

1.3 in
Standards

NEC Articles

Article 800

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU RoHS Compliance Date (yyyy-mm-dd)

2006-02-01

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability

FT6

UL Flammability

NFPA 262 Plenum Flame Test (UL910)

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Non-Plenum Number

5660FT

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.315 Revision Date: 07-12-2021

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
6660FT 0011000 Brown 612825178811
Resources
All Resources
Resource Center
Compliance Documentation
Date: 2006-02-01
