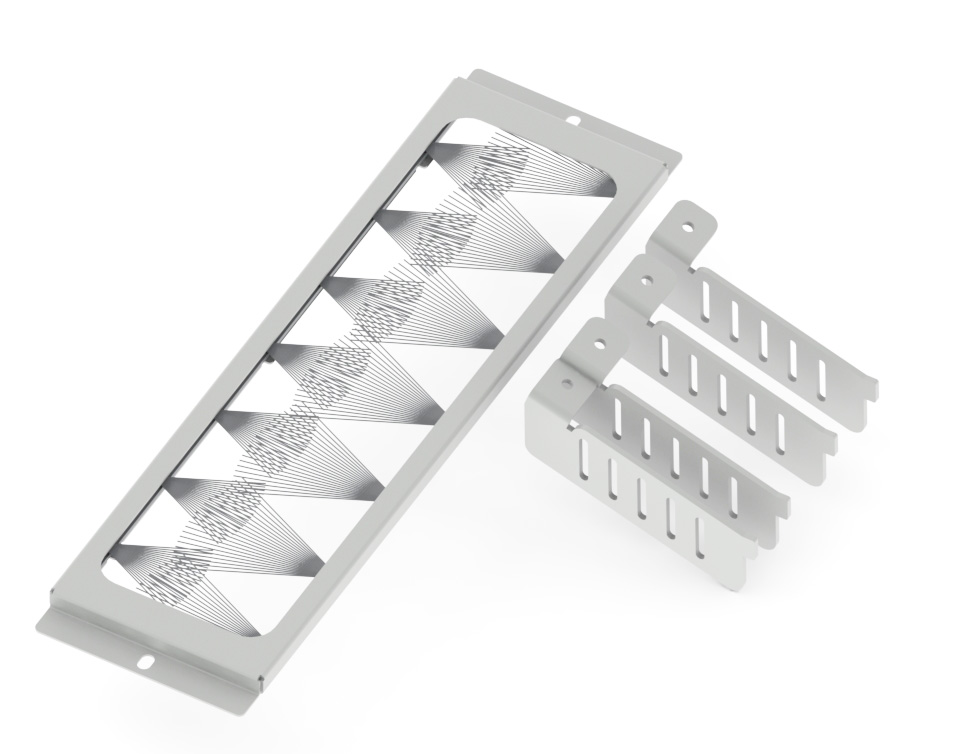

DCX-BOTE-KIT02W

DCX Cable Attachment Bracket - Bottom, Central Office White

...
DCX Cable Attachment Bracket - Bottom (4 Brackets for 24 Cables), Central Office White
Get Product Alerts
Specifications
Product Overview

Environmental Space

Indoor

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Construction

Weight

0.200 lbs

Height

1.500 in

Width

1.060 in

Depth

4.710 in

Physical Specifications

Max Capacity

24 Cables

Mechanical Characteristics
Mechanical Tests
Description
Temperature Range

Operating Temp Range

-10°C to +60°C

Storage Temp Range

-10°C to +75°C

Product Material
Materials
Description Material Color
Cable Entrance Bracket - Bottom Steel White
Standards

MII Order #39 (China RoHS)

EUP 50

Included Parts

Hardware kit: #10-32 self-tapping screw with external tooth washer, (1) per bracket

Related Parts

DCX Frame Module & Patch Panel

Product Notes

Packaging

Packaged in a cardboard box (4 per box)

Notes

For more information, visit our web site at http://www.belden.com/dcx

History

Update and Revision

Revision Number: 0.26 Revision Date: 03-17-2021

Part Numbers
Item #
DCX-BOTE-KIT02W
